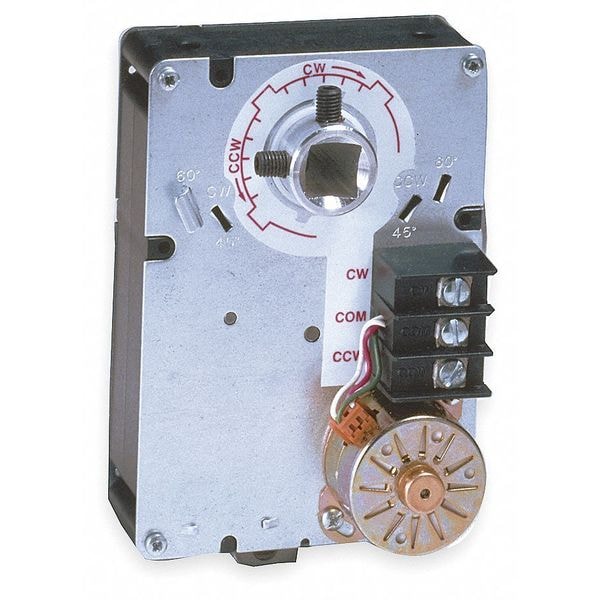

Electric Actuator, 20 to 125F, 1.8VA
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point, On/Off |
| Torque | 35 in-lb |
| Voltage | 24V AC |
| Type | Direct-Coupled Nonspring-Return |
| Item | Actuator |
| Height | 5-1/2 in |
| Ambient Temp. Range | 20 to 125 deg F |
| Timing | 90 sec Nominal @ 60 Hz |
| Stroke Deg. | 90 |
| Power Consumption | 1.8 VA |
| Switch Type | SPDT |
| For Use With | VAV Dampers |
| Depth | 2-1/2 in |
| Width | 3-1/2 in |
| Shaft Type | 2 Set Screws, Aluminum Hub |
| Includes | 4074ENY Bag Assembly |
| Electrical Connections | Screw Terminals |
| Motor Direction | CW, CCW |
| Stroke Degree | 90 Degrees |
| Overall Width | 3-1/2 in |
| IP Rating | Not Applicable |
| Contact Form | SPDT |
| Product Type | Actuator |
| Maximum Operating Temperature | 125 deg F |
| Number of Auxiliary Switches | 2 |
| Input Voltage | 24V AC |
| Shaft Rotation | CW, CCW |
| Overall Height | 5-1/2 in |
| Valve Application | Damper |
| Minimum Operating Temperature | 20 deg F |
| Rated Torque | 35 in-lb |
| NEMA Rating | 1 |
| Overall Depth | 2-1/2 in |
| Time to Close | 90 sec |
| Electrical Connection Type | Terminals |
| Application | Dampers, Valves |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
