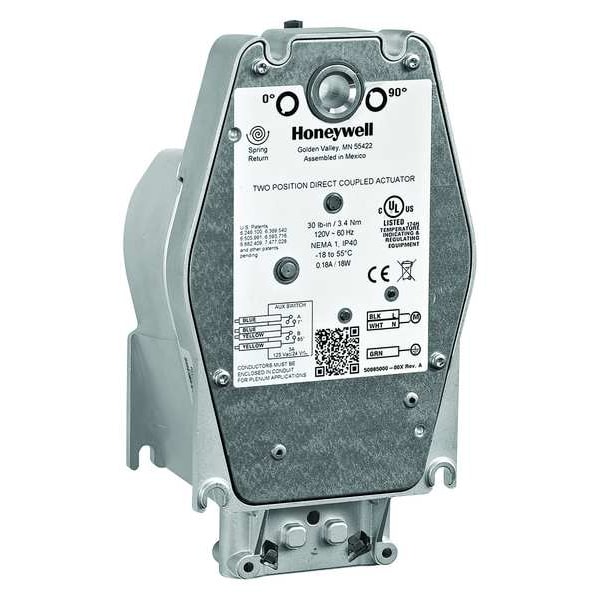

Electric Actuator, 30 in.-lb., 2 SPDT
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | On/Off |
| Torque | 30 in-lb |
| Voltage | 120V AC |
| Type | Spring-Return |
| Switch Type | 2 SPDT |
| Width | 5-1/8 in |
| Replaces Honeywell Motors | Mfr. No. ML4115B1008, Mfr. No. ML4115B1016, Mfr. No. ML4115H1002, Mfr. No. ML4115J1009, Mfr. No. ML4202F1000, Mfr. No. ML4302F1008 |
| Height | 8-15/16 in |
| Depth | 3-1/4 in |
| Electrical Connections | Color Coded Leads |
| Item | Actuator |
| Timing | 15 sec Nominal @ 60 Hz, 15 sec Spring Return |
| Stroke Deg. | 95 +/-3 |
| Power Consumption | 18 W |
| Ambient Temp. Range | 0 to 130 deg F |
| Shaft Type | Round |
| For Use With | Dampers |
| Motor Direction | CW, CCW |
| Number of Auxiliary Switches | 0 |
| Overall Width | 5-1/8 in |
| NEMA Rating | 1 |
| For Shaft Height | Not Applicable |
| Fire Application Rating | Fire Application Rated |
| Product Type | Actuator |
| Overall Depth | 3-1/4 in |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Power Rating | 18 W |
| Maximum Operating Temperature | 130 deg F |
| Minimum Operating Temperature | 0 deg F |
| Electrical Connection Type | Hardwired |
| IP Rating | IP40 |
| Smoke Application Rating | Smoke Application Rated |
| Rated Torque | 30 in-lb |
| Shaft Rotation | CW, CCW |
| Stroke Degree | 95 Degrees |
| Overall Height | 9 in |
| Valve Application | Damper |
| For Shaft Width | Not Applicable |
| Input Voltage | 120V AC |
| For Shaft Shape | Round |
| Time to Close | 15 sec |
| Contact Form | SPDT |
| For Shaft Diameter | 1/2 in |
| Application | Fire and Smoke Dampers |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
