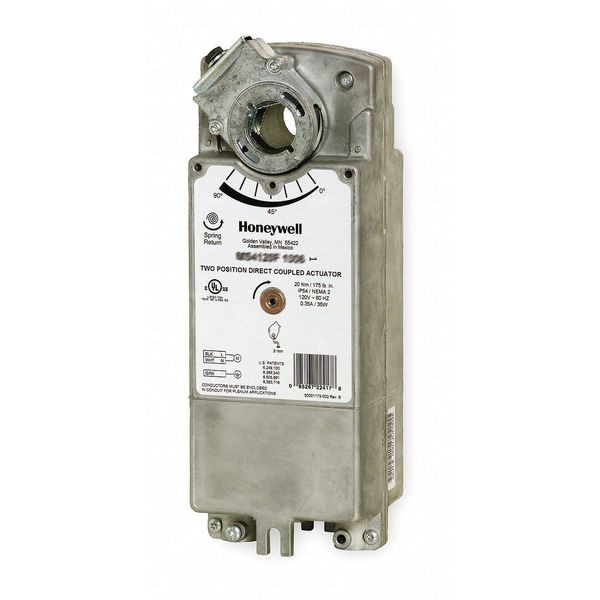

Electric Actuator, -40 to 130F, 2 SPDT
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | On/Off |
| Torque | 175 in-lb |
| Voltage | 120V AC |
| Type | Spring-Return |
| For Use With | Valves and Dampers |
| Item | Actuator |
| Switch Type | 2 SPDT |
| Shaft Type | 3/8 in to 1-3/8 in Round or 3/8 in to 11/16 in Square |
| Timing | 15 sec Nominal @ 60 Hz, 15 sec Spring Return |
| Includes | 3 mm Crank, Self-Centering Shaft Adapter |
| Depth | 2-15/16 in |
| Motor Direction | CW, CCW |
| Ambient Temp. Range | -40 to 130 deg F |
| Width | 3-15/16 in |
| Power Consumption | 35 W |
| Stroke Deg. | 95 +/-3 |
| Electrical Connections | (2) Integral 3/8 in Flexible Conduit |
| Height | 10-11/16 in |
| Time to Close | 15 sec |
| Minimum Operating Temperature | -40 deg F |
| Input Voltage | 120V AC |
| Shaft Rotation | CW, CCW |
| Contact Form | SPDT |
| Overall Depth | 3 in |
| Overall Height | 10-3/4 in |
| For Shaft Shape | Round, Square |
| Product Type | Actuator |
| Valve Application | Damper |
| Fire Application Rating | Fire Application Rated |
| Smoke Application Rating | Smoke Application Rated |
| Power Rating | 35 W |
| NEMA Rating | 2 |
| Electrical Connection Type | Hardwired |
| Overall Width | 4 in |
| Stroke Degree | 95 Degrees |
| Maximum Operating Temperature | 130 deg F |
| Number of Auxiliary Switches | 2 |
| For Shaft Width | 3/4 in |
| IP Rating | IP54 |
| For Shaft Diameter | 1-3/8 in |
| For Shaft Height | 3/4 in |
| Rated Torque | 175 in-lb |
| Application | Ball Valves, Butterfly Valves, Cage Valves, Dampers, Globe Valves |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
