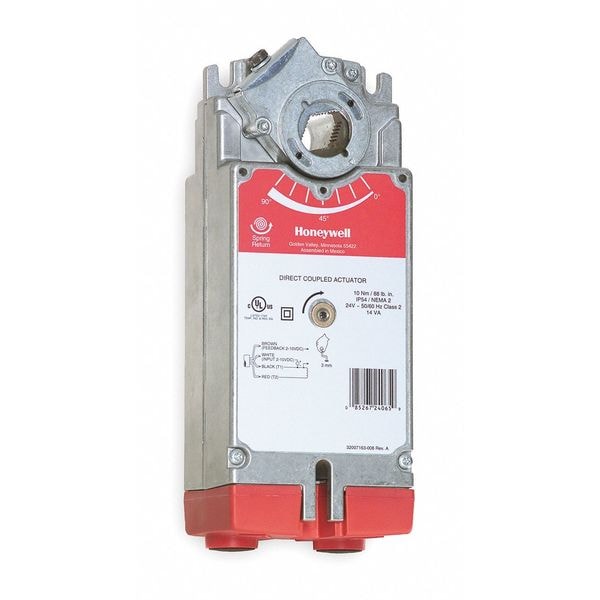

Electric Actuator, -40 to 140F
| Spring Return | Spring Return |
|---|---|
| Signal Type | Floating Point, Proportional |
| Torque | 175 in-lb |
| Voltage | 24V AC |
| Type | Spring-Return |
| Timing | 20 sec Spring Return, 90 sec Nominal @ 60 Hz |
| Depth | 2-15/16 in |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Width | 3-15/16 in |
| Includes | 3 mm Crank, Mounting Bracket, Self-Centering Shaft Adapter, Span Voltage Input |
| Power Consumption | 16 VA |
| For Use With | Valves and Dampers |
| Height | 9-3/4 in |
| Switch Type | SPDT |
| Stroke Deg. | 95 +/-3 |
| Motor Direction | CW, CCW |
| Ambient Temp. Range | -40 to 140 deg F |
| Shaft Type | Self-Centering Clamping |
| Item | Actuator |
| Overall Height | 9-3/4 in |
| Input Voltage | 24V AC |
| Overall Width | 4 in |
| Application | Ball Valves, Butterfly Valves, Cage Valves, Dampers, Globe Valves |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Number of Auxiliary Switches | 2 |
| Time to Close | 90 sec |
| NEMA Rating | 2 |
| Electrical Connection Type | Terminals |
| IP Rating | IP54 |
| Output Signal | Not Applicable |
| Rated Torque | 175 in-lb |
| Minimum Operating Temperature | -40 deg F |
| Contact Form | SPDT |
| Overall Depth | 3 in |
| Maximum Operating Temperature | 140 deg F |
| Valve Application | Damper, Valve |
| Product Type | Actuator |
| Shaft Rotation | CW, CCW |
| Stroke Degree | 95 Degrees |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
