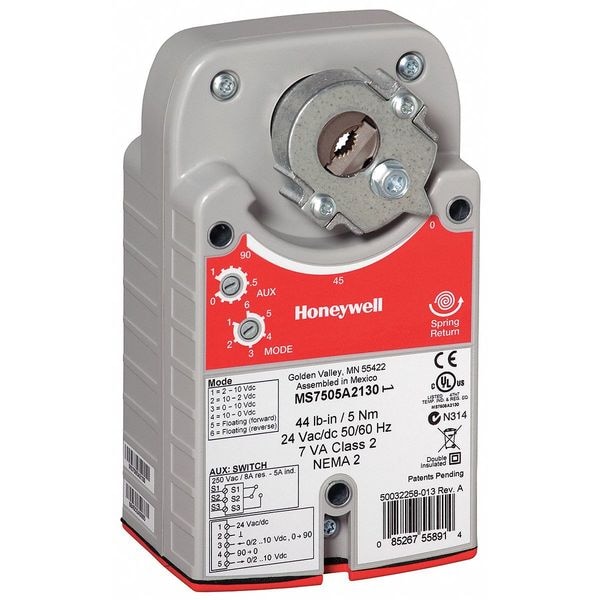

Electric Actuator, 44 in.-lb., -22 to 149
| Spring Return | Spring Return |
|---|---|
| Signal Type | On/Off |
| Torque | 44 in-lb |
| Voltage | 24V AC/DC |
| Type | Spring-Return |
| Includes | Mounting Bracket, Self-Centering Shaft Adapter |
| Shaft Type | Self-Centering Clamping |
| Width | 3.6548 in |
| Stroke Deg. | 95 +/-3 |
| Ambient Temp. Range | -22 to 149 deg F |
| Height | 7-1/2 in |
| Timing | 25 sec Spring Return, 45 sec Nominal @ 60 Hz |
| For Use With | Any Quarter-Turn, Final Control Elements Requiring Spring Return Fail-Safe Operation |
| Depth | 3-5/32 in |
| Motor Direction | CW, CCW |
| Power Consumption | 8 VA |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Switch Type | SPST |
| Item | Actuator |
| Overall Width | 3-5/8 in |
| Overall Height | 7-1/2 in |
| Input Voltage | 24V AC |
| Application | Globe Valves, Final Control Elements |
| Number of Auxiliary Switches | 0 |
| Shaft Rotation | CW, CCW |
| Time to Close | 45 sec |
| Valve Application | Damper, Valve |
| Maximum Operating Temperature | 149 deg F |
| Electrical Connection Type | Terminals |
| NEMA Rating | 2 |
| Contact Form | SPST |
| Output Signal | Not Applicable |
| Product Type | Actuator |
| Minimum Operating Temperature | -22 deg F |
| Stroke Degree | 95 Degrees |
| IP Rating | IP54 |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Rated Torque | 44 in-lb |
| Overall Depth | 3-1/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
