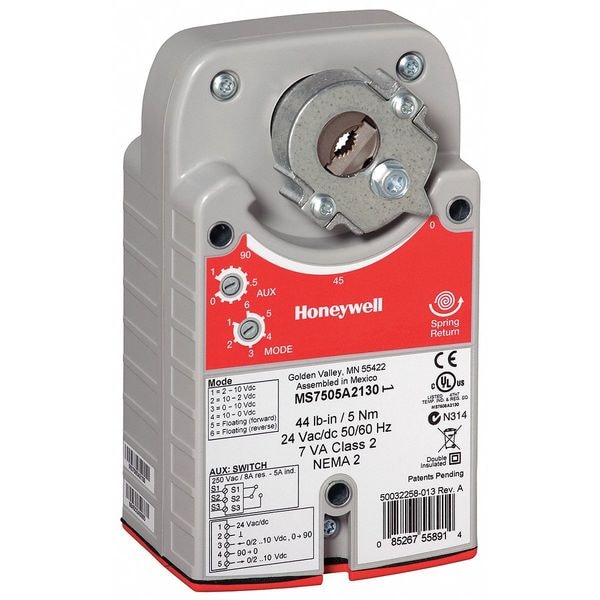

Electric Actuator, 44 in.-lb.-40 to 149
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | Floating Point, Proportional |
| Torque | 44 in-lb |
| Voltage | 24V AC/DC |
| Type | Spring-Return |
| Depth | 3-5/32 in |
| Includes | Mounting Bracket, Self-Centering Shaft Adapter |
| Power Consumption | 7.5 VA |
| For Use With | Any Quarter-Turn, Final Control Elements Requiring Spring Return Fail-Safe Operation |
| Timing | 25 sec Spring Return, 45 sec Nominal @ 60 Hz |
| Ambient Temp. Range | -40 to 149 deg F |
| Item | Actuator |
| Shaft Type | Self-Centering Clamping |
| Width | 3.6548 in |
| Height | 7-1/2 in |
| Motor Direction | CW, CCW |
| Stroke Deg. | 95 +/-3 |
| Switch Type | SPDT |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Overall Height | 7-1/2 in |
| Time to Close | 90 sec |
| Stroke Degree | 95 Degrees |
| Product Type | Actuator |
| Shaft Rotation | CW, CCW |
| Overall Width | 3-5/8 in |
| Contact Form | SPDT |
| Minimum Operating Temperature | -40 deg F |
| Application | Ball Valves, Butterfly Valves, Cage Valves, Dampers, Globe Valves |
| Maximum Operating Temperature | 149 deg F |
| Number of Auxiliary Switches | 1 |
| Overall Depth | 3-1/8 in |
| Electrical Connection Type | Terminals |
| Rated Torque | 44 in-lb |
| Input Voltage | 24V AC |
| Valve Application | Damper, Valve |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
