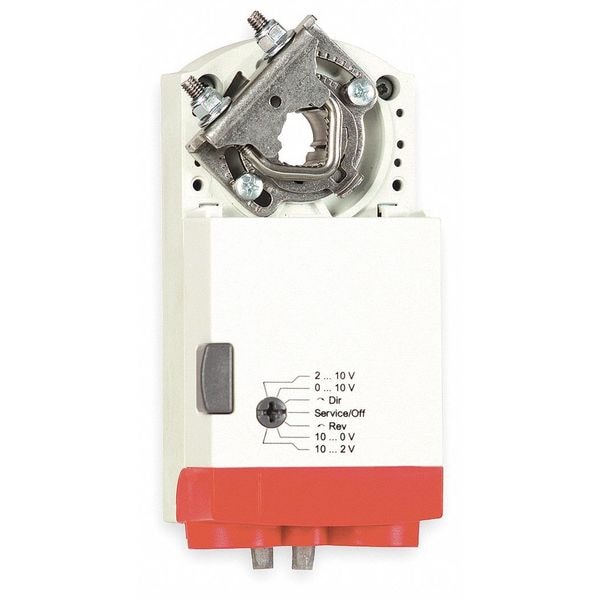

Electric Actuator, 88 in.-lb.-5 to 140F
| Spring Return | Non-Spring Return |
|---|---|
| Signal Type | Proportional |
| Torque | 88 in-lb |
| Voltage | 24V AC/DC |
| Type | Direct-Coupled Nonspring-Return |
| Power Consumption | 5 VA |
| Item | Actuator |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Stroke Deg. | 95 +/-3 |
| Includes | Mounting Bracket, Screws, Shaft Adapter, Water-Tight Strain-Relief Cable Fittings |
| Ambient Temp. Range | -5 to 140 deg F |
| For Use With | Air Handlers, Air Units, Louvers, Ventilation Flaps |
| Shaft Type | U-Bolt Clamp |
| Timing | 95 sec Nominal @ 60 Hz |
| Height | 5-1/4 in |
| Depth | 2-1/2 in |
| Switch Type | SPDT |
| Motor Direction | CW, CCW |
| Width | 2-1/2 in |
| Application | Air Handlers, Air Units, Dampers, Louvers, Ventilation Flaps |
| Overall Width | 2-1/2 in |
| Input Voltage | 24V AC |
| Overall Height | 5-1/4 in |
| Standards | CE Certified, cUL Listed, UL 873, UL Listed |
| Time to Close | 95 sec |
| Rated Torque | 88 in-lb |
| Number of Auxiliary Switches | 0 |
| Valve Application | Damper |
| Contact Form | SPDT |
| Time to Open | 90 sec |
| Minimum Operating Temperature | -5 deg F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Weight | 1 lb |
| Maximum Operating Temperature | 140 deg F |
| Stroke Degree | 95 Degrees |
| Electrical Connection Type | Terminals |
| Overall Depth | 2-1/2 in |
| Shaft Rotation | CW, CCW |
| NEMA Rating | 2 |
| Output Signal | Not Applicable |
| Product Type | Actuator |
| IP Rating | IP54 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
