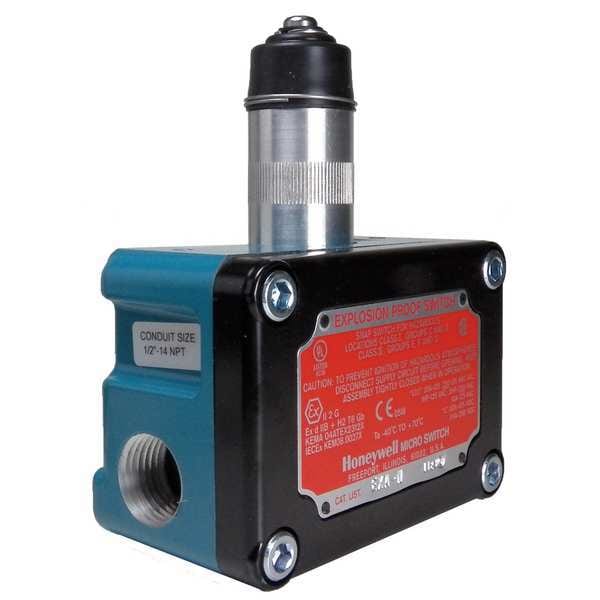

Interruptor de límite a prueba de explosiones, con émbolo, 1NC/1NO, 10A @ 480V CA, Ubicación del actuador: Superior
| Item | Explosion Proof Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 480 V |
| DC Contact Rating - Limit Switch | 0.25 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| IP Rating | No IP Rating |
| Body Depth - Limit Switch | 2.02 in |
| Amps | 15 Ind./0.5 Res./0.25 Res. |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Stem Thread - Limit Switch | No Stem |
| Voltage Rating | 120/250/480VAC/120/250VDC |
| Body Height - Limit Switch | 2.56 in |
| Contact Form | SPDT, 1NC, 1NO |
| Travel | Differential Travel 0.004 in, Maximum Pretravel 0.078 in, Minimum Over Travel 0.187 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Height | 2.56 in |
| Actuator Location | Top |
| Wiring Entry | 1/2"-14 NPT |
| Width | 2.78 in |
| Body Style (Limit Switch) | Miniature |
| DC Contact Rating | 0.25 A @ 250 V |
| Number of Poles | 1 |
| Actuator Location (Limit Switch) | Top |
| Actuator Length - Limit Switch | 2.06 in |
| Limit Switch Style | Explosion Proof Limit Switch |
| Body Material | Aluminum |
| Contact Form - Limit Switch | 1NO, 1NC |
| Electrical Connection | Screw Terminals |
| Standards | ATEX, CSA, IEC Ex, UL |
| Mounting Hole - Limit Switch | (2) 10-32 Thread |
| Operating Temp. Range | -40 to 160 deg F |
| Boot Sealed Actuator - Limit Switch | Yes |
| Mounting Hole Spacing - Limit Switch | 2.06 in |
| NEMA Rating | 1, 7 |
| Series | EX |
| AC Contact Rating | 10 A @ 480 V |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Actuator Style (Limit Switch) | Plunger |
| Depth | 2.02 in |
| Actuator Style | Plunger, Boot Sealed |
| Movement | Linear |
| Actuator Length | 2.06 in |
| Operating Force | 3.0 lb |
| Certification | ATEX, IEC Ex, Div. 1, & 2, Class I, Groups C, & D; Div. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEx d IIB + H2 T6 |
| Body Width - Limit Switch | 2.78 in |
| Arm Width | Not Applicable |
| Roller Width | Not Applicable |
| Arm Material | Not Applicable |
| Roller Material | Not Applicable |
| Differential Travel | 0.004 in |
| Arm Depth | Not Applicable |
| Operating Temperature | -40 to 160 Degree F |
| Over-Travel/Total-Travel | 0.188" (4.78mm) OT min. |
| Pre-Travel - Travel To Operate | 0.078" (1.98mm) PT max. |
| Connection | 1/2 in. - 14 NPT |
| Current Rating - nominal | 10A |
| Operator Configuration | With Seal Boot |
| Rating - NEMA | NEMA 1,7,9 |
| Listings - Hazardous | Class 1 Div 1, C,D, Class 2 Div 1, E,F,G |
| Contacts | SPDT 1-NO 1-NC |
| Type | Limit Switch |
| Head/Operator | Top Plunger |
| Electrical Rating - VAC/DC | 10A 480VAC, 0.25A 250VDC |
| Differential-Travel - Travel To Reset | 0.004" (0.1mm) DT max. |
| Head Action | Spring Return, Standard |
| Operating Force - Maximum | Not Applicable |
| Operating Temperature - Maximum | 160 deg F |
| Number of Mounting Holes | 2 |
| Wireless Network Interface | Not Applicable |
| Overtravel | 0.19 in |
| Operating Force - Minimum | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Roller Position | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G |
| Reset Travel | Not Applicable |
| Lamp Type | Not Applicable |
| Boot Sealed Actuator | Boot Included |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Mounting Style | Surface |
| Action | Not Applicable |
| Body Height | 2.56 in |
| Operating Torque - Maximum | Not Applicable |
| Mounting Hole Diameter | Not Applicable |
| Roller Diameter | Not Applicable |
| Roller Adjustability | Not Applicable |
| Body Width | 2.78 in |
| Body Configuration | Non Plug-In |
| Pretravel | 0.08 in |
| Total Travel | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Includes Actuator | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Directional Movement | Linear |
| Operating Torque - Minimum | Not Applicable |
| Body Depth | 2.02 in |
| Plunger Adjustability | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 52 mm |
| NEMA Enclosure Rating | 1, 7, 9 |
| Package Quantity | 1 |
