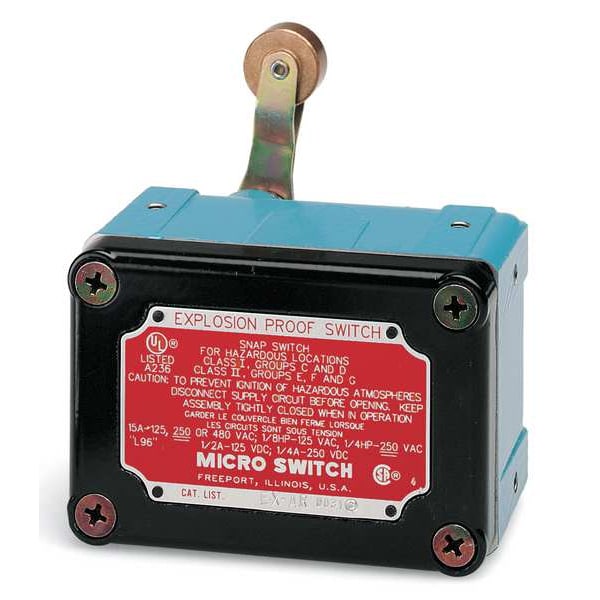

Interruptor de límite a prueba de explosiones, palanca de rodillo, rotativo, 1NC/1NO, 15A @ 600V CA, Ubicación del actuador: Parte superior.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Explosion Proof Limit Switch |
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| DC Contact Rating - Limit Switch | 0.25 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Voltage Rating | 120/250/480VAC/120/250VDC |
| Mounting Hole - Limit Switch | (2) 10-32 Thread |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Height | 2.56 in |
| Standards | ATEX, CSA, IEC Ex, UL |
| Operating Force | 0.50 lb to 1.25 lb |
| Body Height - Limit Switch | 2.56 in |
| Body Material | Aluminum |
| Actuator Style | Rotary Lever Arm |
| Roller Material | Bronze |
| Actuator Location | Top |
| Limit Switch Style | Explosion Proof Limit Switch |
| Basic Actuator Style (Limit Switch) | Rotary |
| Number of Poles | 1 |
| Body Depth - Limit Switch | 2.02 in |
| DC Contact Rating | 0.25 A @ 250 V |
| IP Rating | No IP Rating |
| Actuator Length | 1-1/2 in |
| Depth | 2.02 in |
| Arm Material | Steel |
| Electrical Connection | Screw Terminals |
| Boot Sealed Actuator (Limit Switch) | No |
| Travel | Maximum Differential Travel 0.007 in, Maximum Over Travel 90 Degrees , Maximum Pretravel 0.219 in |
| Movement | CW |
| Stem Thread - Limit Switch | No Stem |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Operating Temp. Range | -40 to 160 deg F |
| Mounting Hole Spacing - Limit Switch | 2.06 in |
| Wiring Entry | 1/2"-14 NPT |
| Roller Dia. | 3/4 in |
| Body Style (Limit Switch) | Miniature |
| Actuator Location (Limit Switch) | Top |
| Certification | ATEX, IEC Ex, Div. 1, & 2, Class I, Groups C, & D; Div. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEx d IIB + H2 T6 |
| Width | 2.78 in |
| Boot Sealed Actuator - Limit Switch | No |
| Amps | 15 Ind./0.5 Res./0.25 Res. |
| Roller Width | 0.31 in |
| Series | EX |
| NEMA Rating | 1, 7 |
| Contact Form - Limit Switch | 1NO, 1NC |
| Contact Form | SPDT, 1NC, 1NO |
| Actuator Length - Limit Switch | 1-1/2 in |
| Body Width - Limit Switch | 2.78 in |
| AC Contact Rating | 15 A @ 600 V |
| Arm Width | Not Applicable |
| Differential Travel | 0.01 in |
| Arm Depth | Not Applicable |
| Products By Industry | Electrical |
| Arm Length - Maximum | Not Applicable |
| Includes Actuator | Not Applicable |
| Body Width | 2.78 in |
| Mounting Hole Diameter | Not Applicable |
| Body Configuration | Non Plug-In |
| Mounting Hole Horizontal Center to Center Distance | 52 mm |
| Arm Adjustability | Not Applicable |
| Pretravel | 8 Degrees |
| Roller Adjustability | Not Applicable |
| Overtravel | 90 Degrees |
| Total Travel | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Roller Diameter | 3/4 in |
| Operating Torque - Minimum | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Reset Travel | Not Applicable |
| Mounting Style | Surface |
| Operating Torque - Maximum | Not Applicable |
| Directional Movement | CW |
| NEMA Enclosure Rating | 1, 7, 9 |
| Arm Length - Minimum | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Operating Temperature - Maximum | 160 deg F |
| Number of Mounting Holes | 2 |
| Lamp Type | Not Applicable |
| Body Height | 2.56 in |
| Action | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G |
| Operating Force - Minimum | 8 ozf |
| Plunger Adjustability | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Roller Position | Not Applicable |
| Body Depth | 2.02 in |
| Operating Force - Maximum | 20 ozf |
| Package Quantity | 1 |
