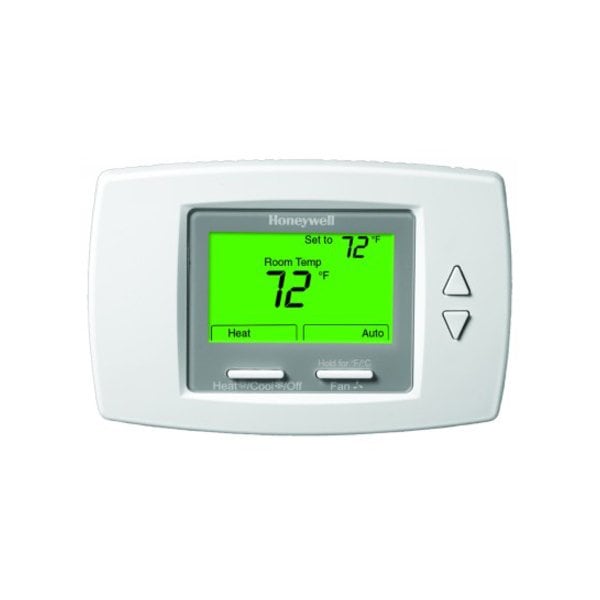

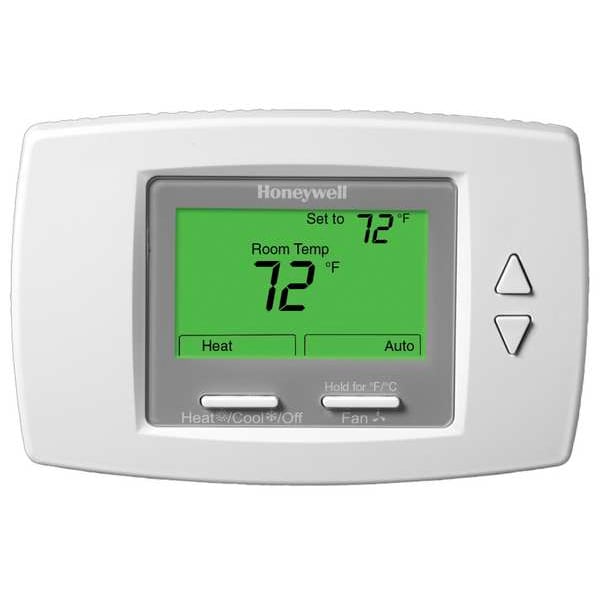

Fan Coil Thermostat, Low Voltage, White
| Item | Fan Coil Thermostat |
|---|---|
| Includes | Mounting Hardware |
| Color | White |
| Height | 3.8 in |
| Fan Switching | Hi-Med-Low-Auto-Off |
| Voltage | 24V |
| Thermostat Number of Pipes | 2, 4 |
| Enclosure Type | Plastic |
| Height (In.) | 3-13/16 |
| Rated For Pilot Duty | No |
| Differential (Deg. F) | +/-2 |
| Fan Coil Thermostat Type | Low Voltage |
| Depth (In.) | 1-1/8 |
| Thermostat Number of Speeds | 3 |
| Number of Stages | 1 |
| Thermostat Switch Type | 5 Relays |
| Thermostat Heating/Cooling | Heating/Cooling |
| Thermostat Control Range | 50 Degrees to 90 Degrees F |
| Width (In.) | 5-13/16 |
| Thermostat Item | Fan Coil Thermostat |
| Temp. Settings per Day | 1 |
| Display | LCD |
| Mounting Position | Direct Mount on Junction box |
| Application | Heat and Cool |
| Input Voltage | 20 to 30 |
| System Switching | Auto-Heat-Cool-Off |
| Type | Low Voltage |
| Depth | 1.1" |
| Overall Height | 3-13/16 in |
| Overall Width | 5-13/16 in |
| Width | 5.8 in |
| Switch Type | SPST |
| Number of Zones | 1 |
| Dehumidification Control | No |
| Dual Transformer Compatible | No |
| System/Fan Settings | Auto-Cool-Heat-Off, Hi-Med-Low-Auto-Off |
| Number of Pipes | 2, 4 |
| Humidification Control | No |
| Temperature Control Range | 50 to 99 deg F |
| Temperature Limiting | Yes |
| Number of Relay Inputs | 5 |
| Backlit Screen | Yes |
| Mounting Direction/Shape | Horizontal |
| Digit Size | Standard |
| Operating Temperature Range | 50 to 90 deg F |
| Programming Capability | Not Programmable |
| Temperature Differential | 2 deg F |
| Changeover Type | Manual, Automatic |
| Application/Stages | Heat and Cool, 1H/1C |
| System Settings | Auto-Cool-Heat-Off |
| Mounting Direction | Horizontal |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Contact Rating | 24V AC |
| Thermostat Type | Low Voltage |
| Shape | Rectangle |
| Includes Positive Off | No |
| Temperature Scale | Fahrenheit, Celsius |
| Backlit Screen Color | Green |
| Minimum Control Temperature | 50 deg F |
| Control Type | Push Button |
| Operating Humidity Range | 5 to 95 % |
| Temperature settings per day | Manual Adjust |
| Key Pad Lockout | Yes |
| Overall Depth | 1-1/8 in |
| Housing Color | White |
| Temperature Readout | Yes |
| Display Type | Digital |
| Terminal Designations | GH, GL, GM, N, PS, R, RS, SB, SC, W/Y, Y/A |
| Housing Material | Plastic |
| Differential Type | Fixed |
| Screen Height | 1 9/16 in |
| Fan Settings | Hi-Med-Low-Auto-Off |
| Screen Width | 2 1/2 in |
| Temporary Program Override | Yes |
| Stages | 1H, 1C |
| Compatible System Type | Fan Coil Unit |
| Maximum Control Temperature | 99 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
