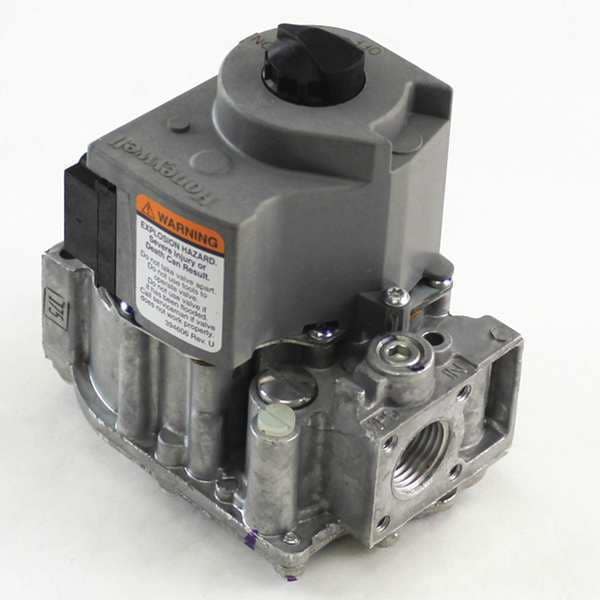

Gas Valve, 1/2", 24V, DSI Dual Main, LP Kit
| For Use With | Universal |
|---|---|
| Item | Gas Valve |
| Flow Direction | Straight-Thru |
| Fits Brand | Multiple |
| Voltage | 24 V AC |
| Product Type | Gas Valve |
| Includes Pressure Regulator | Pressure Regulator Included |
| Valve Design | Single |
| Includes Conversion Kit | Conversion Kit Included |
| Operating Temperature - Maximum | 175 deg F |
| Installation Orientation | Vertical |
| Heating Capacity - Maximum | 200,000 BtuH |
| Overall Depth | 2-11/16 in |
| Overall Length | 4-1/8 in |
| Operating Temperature - Minimum | 0 deg F |
| Port Connection Size | 1/2 in |
| Pressure Tap Connection Size | 1/8 in |
| For Media | Natural Gas |
| Includes On/Off Switch | On/Off Switch Included |
| Includes Thermostat | Mechanical Thermostat Included |
| Includes Pressure Tap | Pressure Tap Inlet Included |
| Manufacturer Series | VR8205 |
| Overall Height | 4-15/16 in |
| Reducer Bushings Included | 1/2 in X 3/8 in Reducer Bushing |
| Pressure Tap Connection Type | NPT |
| Electrical Connections | Quick Connect Terminal |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
