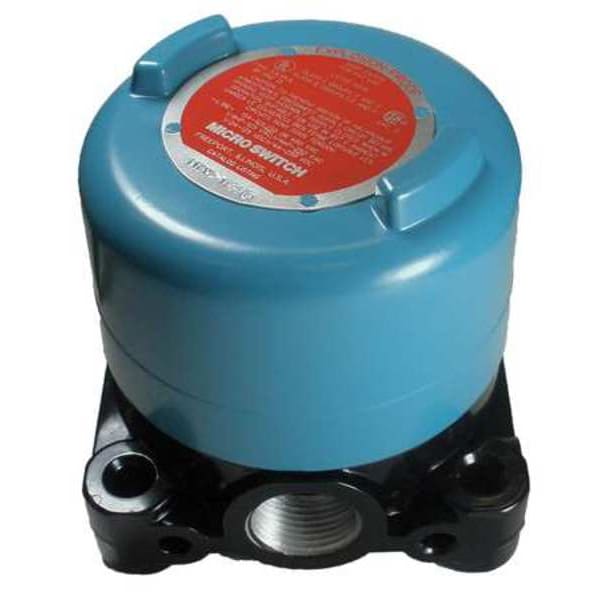

Interruptor de límite de ubicación peligrosa, sin palanca, tipo rotativo, 1NC/1NO, 15A @ 480V CA, Ubicación del actuador: Parte superior.
| Item | Hazardous Location Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 480 V |
| DC Contact Rating - Limit Switch | 0.02 A @ 250 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit Switch | (4) 0.33 in dia |
| Operating Force | 0.37 ft-lb |
| Stem Thread - Limit Switch | No Stem |
| Width | 4 in |
| Depth | 4.09 in |
| Actuator Location | Top |
| DC Contact Rating | 0.02 A @ 250 V |
| Certification | Class I, Division1, Groups C, D), 9 (Class II, Division1, Groups E, F,G) |
| NEMA Rating | 1, 13, 3, 4, 4X, 6, 6P, 7 |
| Wiring Entry | 3/4 in NPT |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Height - Limit Switch | 4 in |
| Height | 4 in |
| Basic Actuator Style (Limit Switch) | Rotary |
| Mounting Hole Spacing - Limit Switch | 3.15 in x 3.15 in |
| Limit Switch Style | Hazardous Location Limit Switch |
| IP Rating | 66, 67 |
| Contact Form - Limit Switch | 1NO, 1NC |
| Actuator Location (Limit Switch) | Top |
| Body Style (Limit Switch) | Standard |
| Boot Sealed Actuator - Limit Switch | No |
| Body Material | Aluminum |
| Body Width - Limit Switch | 4 in |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Number of Poles | 1 |
| AC Contact Rating | 15 A @ 480 V |
| Amps | 15 Ind./0.5 Res./0.25 Res. |
| Body Depth - Limit Switch | 4.09 in |
| Travel | Differential Travel 10 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 90 Degrees |
| Voltage Rating | 120/250/480VAC/120/250VDC |
| Series | CX |
| Actuator Style | Rotary Head, No Lever |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Contact Form | SPDT, 1NC, 1NO |
| Movement | CCW, CW |
| Electrical Connection | Screw Terminals |
| Standards | CSA, UL |
| Operating Temp. Range | -13 to 185 deg F |
| Roller Width | Not Applicable |
| Arm Material | Not Applicable |
| Differential Travel | 10 Degrees |
| Roller Material | Not Applicable |
| Arm Width | Not Applicable |
| Actuator Length | Not Applicable |
| Arm Depth | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Number of Mounting Holes | 4 |
| Body Depth | 4.09 in |
| Pretravel | 15 Degrees |
| Mounting Hole Diameter | 0.33 in |
| Directional Movement | CW, CCW |
| Includes Actuator | No Actuator Included |
| Operating Temperature - Minimum | -13 deg F |
| Body Width | 4 in |
| Plunger Adjustability | Not Applicable |
| Mounting Style | Surface |
| Mounting Hole Vertical Center to Center Distance | 80 mm |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 3, 4X, 7 |
| Operating Force - Minimum | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 80 mm |
| Roller Diameter | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Maximum | 185 deg F |
| Reset Travel | Not Applicable |
| Roller Position | Not Applicable |
| Operating Force - Maximum | Not Applicable |
| Operating Torque - Maximum | 4.44 in-lb |
| Roller Adjustability | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Lamp Type | Not Applicable |
| Body Configuration | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Overtravel | 90 Degrees |
| Arm Adjustability | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Total Travel | Not Applicable |
| Body Height | 4 in |
| Action | Maintained |
| Package Quantity | 1 |
