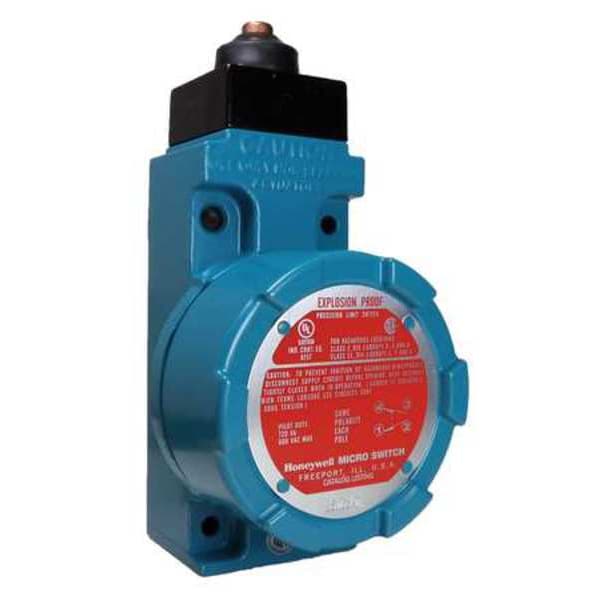

Interruptor de límite para ubicaciones peligrosas, con pulsador, 1 NC / 1 NO, 10A @ 600V AC, Ubicación del actuador: Superior
| Item | Hazardous Location Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Actuator Length - Limit Switch | 2.31 in |
| Body Depth - Limit Switch | 2.44 in |
| Actuator Style (Limit Switch) | Plunger |
| Stem Thread - Limit Switch | No Stem |
| Actuator Length | 2.31 in |
| Number of Poles | 1 |
| Actuator Location | Top |
| Body Style (Limit Switch) | Standard |
| Operating Temp. Range | 10 to 250 deg F |
| Contact Form - Limit Switch | 1NO, 1NC |
| Wiring Entry | 1/2"-14 NPT |
| Basic Actuator Style (Limit Switch) | Plunger |
| Standards | CSA, UL |
| Limit Switch Style | Hazardous Location Limit Switch |
| Electrical Connection | Screw Terminals |
| Actuator Style | Plunger |
| Series | LSX |
| Contact Form | SPDT, 1NC, 1NO |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| NEMA Rating | 1, 13, 3, 4, 6, 7 |
| Depth | 2.44 in |
| Movement | Linear |
| Height | 5-3/4 in |
| Amps | 10 |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Travel | Maximum Differential Travel 0.015 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in |
| Body Width - Limit Switch | 2 in |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Location (Limit Switch) | Top |
| Body Material | Aluminum |
| Certification | Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G |
| IP Rating | No IP Rating |
| AC Contact Rating | 10 A @ 600 V |
| Voltage Rating | 600VAC/250VDC |
| Boot Sealed Actuator (Limit Switch) | No |
| Width | 2 in |
| DC Contact Rating | 10 A @ 250 V |
| Body Height - Limit Switch | 4-3/4 in |
| Operating Force | 4.0 in-lb |
| Roller Material | Not Applicable |
| Arm Width | Not Applicable |
| Arm Material | Not Applicable |
| Roller Width | Not Applicable |
| Differential Travel | 0.02 in |
| Arm Depth | Not Applicable |
| Rating - NEMA | NEMA 4,6,7,9 |
| Current Rating - nominal | 10A |
| Contacts | SPDT 1-NO 1-NC |
| Head Action | Spring Return, Standard |
| Differential-Travel - Travel To Reset | 0.015" (0.38mm) DT max. |
| Housing Construction | Zinc Die Cast |
| Listings - Hazardous | Class 1 Div 1, B,C,D, Class 2 Div 1, E,F,G |
| Electrical Rating - VAC/DC | 10A 600VAC, 0.25A 250VDC |
| Over-Travel/Total-Travel | 0.19" (4.83mm) OT min. |
| Operating Temperature | 10 to 250 Degree F |
| Head/Operator | Top Plunger |
| Type | Limit Switch |
| Connection | 1/2 in. - 14 NPT |
| Pre-Travel - Travel To Operate | 0.07" (1.78mm) PT max. |
| Includes Actuator | Not Applicable |
| Operating Temperature - Maximum | 250 deg F |
| Roller Adjustability | Not Applicable |
| Body Depth | 2.44 in |
| Mounting Hole Horizontal Center to Center Distance | 29 mm |
| Body Width | 2 in |
| Overtravel | 0.19 in |
| Operating Torque - Maximum | Not Applicable |
| Body Configuration | Non Plug-In |
| Pretravel | 0.07 in |
| Lamp Type | Not Applicable |
| Mounting Hole Diameter | 0.2 in |
| Mounting Style | Surface |
| Action | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Roller Diameter | Not Applicable |
| Body Height | 4-3/4 in |
| Number of Mounting Holes | 2 |
| Total Travel | Not Applicable |
| Operating Temperature - Minimum | 10 deg F |
| Arm Length - Maximum | Not Applicable |
| Reset Travel | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 3, 7 |
| Boot Sealed Actuator | No Boot Included |
| Hazardous Location Specification | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Roller Position | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 86 mm |
| Directional Movement | Linear |
| Operating Force - Maximum | 4 lbf |
| Package Quantity | 1 |
