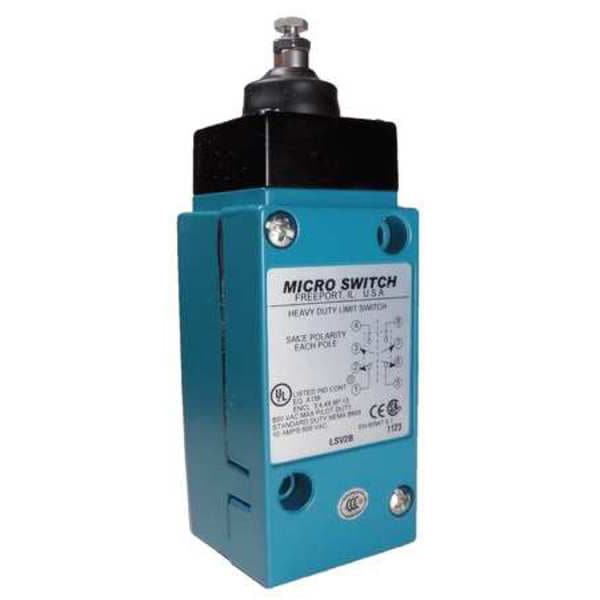

Interruptor de límite resistente, émbolo, 2NC/2NO, 10A @ 600V CA, Ubicación del actuador: Parte superior
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Voltage Rating | 600VAC/250VDC |
| Actuator Location (Limit Switch) | Top |
| Basic Actuator Style (Limit Switch) | Plunger |
| Contact Form - Limit Switch | 2NO, 2NC |
| Wiring Entry | 1/2 in NPT |
| Actuator Length | 2.34 in |
| Depth | 1.79 in |
| Series | LSV |
| DC Contact Rating | 10 A @ 250 V |
| Actuator Length - Limit Switch | 2.34 in |
| IP Rating | 65, 66, 67 |
| Number of Poles | 2 |
| Actuator Style | Plunger |
| Limit Switch Style | Heavy Duty Limit Switch |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Style (Limit Switch) | Plunger |
| Height | 4.69 in |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Body Style (Limit Switch) | Miniature |
| AC Contact Rating | 10 A @ 600 V |
| Body Depth - Limit Switch | 1.79 in |
| Width | 1.88 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Electrical Connection | Screw Terminals |
| Amps | 10 |
| Contact Form | 2NO, 2NC, DPDT |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Body Material | Zinc Die Cast |
| Stem Thread - Limit Switch | No Stem |
| Boot Sealed Actuator (Limit Switch) | No |
| Travel | Maximum Differential Travel 0.020 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in |
| Actuator Location | Top |
| Operating Temp. Range | 10 to 200 deg F |
| Body Height - Limit Switch | 2.95 in |
| Standards | CCC, CE, CSA, UL |
| Movement | Adjustable, Linear |
| NEMA Rating | 1, 12, 13, 3, 4, 4X, 6, 6P |
| Operating Force | 4.0 in-lb |
| Body Width - Limit Switch | 1.88 in |
| Arm Material | Not Applicable |
| Roller Material | Not Applicable |
| Arm Width | Not Applicable |
| Roller Width | Not Applicable |
| Differential Travel | 0.02 in |
| Arm Depth | Not Applicable |
| Operating Torque - Maximum | 4 in-lb |
| Operating Temperature - Minimum | 10 deg F |
| Total Travel | Not Applicable |
| Mounting Style | Surface |
| Lamp Type | Not Applicable |
| Body Height | 2.95 in |
| Overtravel | 0.19 in |
| Roller Adjustability | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Includes Actuator | Not Applicable |
| Body Configuration | Non Plug-In |
| Boot Sealed Actuator | No Boot Included |
| Wireless Network Interface | Not Applicable |
| Reset Travel | Not Applicable |
| Number of Mounting Holes | 2 |
| Mounting Hole Vertical Center to Center Distance | 59 mm |
| Arm Length - Maximum | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Directional Movement | Linear |
| Operating Force - Maximum | Not Applicable |
| Body Width | 1.88 in |
| Action | Momentary |
| Arm Length - Minimum | Not Applicable |
| Mounting Hole Diameter | 0.2 in |
| Operating Temperature - Maximum | 200 deg F |
| Plunger Adjustability | Adjustable |
| Roller Position | Not Applicable |
| Pretravel | 0.07 in |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 3, 4X |
| Arm Adjustability | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 29 mm |
| Body Depth | 1.79 in |
| Roller Diameter | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Package Quantity | 1 |
