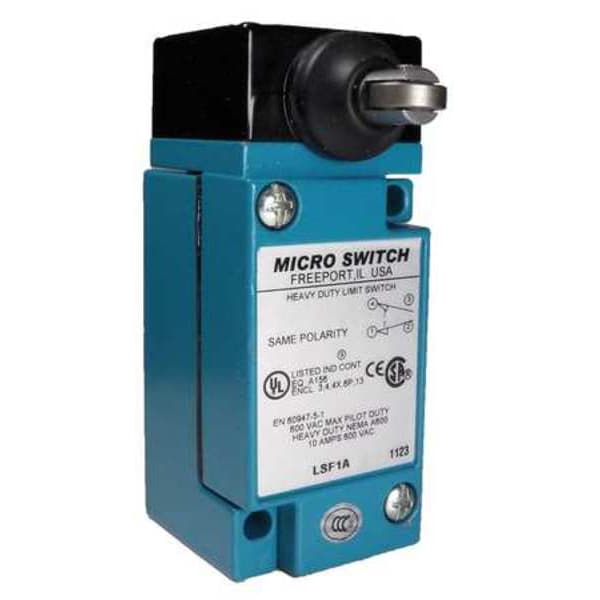

Interruptor de límite resistente, émbolo, rodillo, 1NC/1NO, 10A @ 600V AC, ubicación del actuador: lateral.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| NEMA Rating | 1, 12, 13, 3, 4, 4X, 6, 6P |
| Limit Switch Style | Heavy Duty Limit Switch |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Movement | Cam, Slide |
| Voltage Rating | 600VAC/250VDC |
| Actuator Length - Limit Switch | 1.74 in |
| Boot Sealed Actuator - Limit Switch | No |
| Wiring Entry | 1/2"-14 NPT |
| Body Material | Zinc Die Cast |
| Stem Thread - Limit Switch | No Stem |
| Contact Form - Limit Switch | 1NO, 1NC |
| AC Contact Rating | 10 A @ 600 V |
| Operating Force | 6.0 in-lb |
| Width | 1.62 in |
| Body Height - Limit Switch | 2.95 in |
| DC Contact Rating | 10 A @ 250 V |
| Actuator Style | Plunger |
| Boot Sealed Actuator (Limit Switch) | No |
| Roller Material | Steel |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Roller Dia. | 1/2 in |
| Electrical Connection | Screw Terminals |
| Depth | 1-3/4 in |
| Contact Form | SPDT, 1NC, 1NO |
| Body Depth - Limit Switch | 1-3/4 in |
| Travel | Differential Travel 0.045 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in |
| Series | LSF |
| Body Style (Limit Switch) | Miniature |
| Number of Poles | 1 |
| Actuator Location | Side |
| Actuator Location (Limit Switch) | Side |
| Body Width - Limit Switch | 1.62 in |
| Operating Temp. Range | 10 to 200 deg F |
| Roller Width | 0.19 in |
| Actuator Length | 1.74 in |
| Amps | 10 |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| IP Rating | 65, 66, 67 |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Basic Actuator Style (Limit Switch) | Plunger |
| Height | 4.2 in |
| Standards | CCC, CE, CSA, UL |
| Differential Travel | 0.03 in |
| Arm Width | Not Applicable |
| Arm Material | Not Applicable |
| Arm Depth | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Mounting Hole Diameter | 0.2 in |
| Operating Temperature - Minimum | 10 deg F |
| Pretravel | 0.1 in |
| Arm Adjustability | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Body Width | 1.62 in |
| Mounting Style | Surface |
| Body Configuration | Plug-In |
| Total Travel | Not Applicable |
| Overall Width | 1.62 in |
| Roller Diameter | 1/2 in |
| Operating Temperature - Maximum | 250 deg F |
| Boot Sealed Actuator | No Boot Included |
| Includes Actuator | Not Applicable |
| Overall Depth | 2.44 in |
| Roller Position | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Action | Momentary |
| Reset Travel | Not Applicable |
| Number of Mounting Holes | 2 |
| Overtravel | 0.19 in |
| Body Height | 2.95 in |
| Directional Movement | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Body Depth | 1-3/4 in |
| Hazardous Location Specification | Not Applicable |
| Roller Adjustability | Not Applicable |
| Operating Torque - Maximum | Not Applicable |
| Lamp Type | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 3, 4X |
| Operating Torque - Minimum | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 60 mm |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 30 mm |
| Overall Height | 4.2 in |
| Operating Force - Maximum | 26.7 N |
| Package Quantity | 1 |
