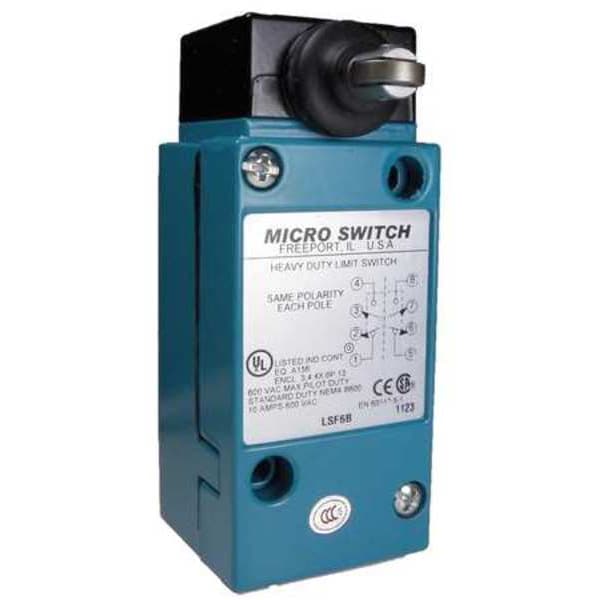

Interruptor de límite de trabajo pesado, émbolo, rodillo, 2NC/2NO, 10A @ 600V AC, ubicación del actuador: Lateral.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Body Depth - Limit Switch | 1.79 in |
| Height | 4.69 in |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Actuator Length - Limit Switch | 1.74 in |
| Contact Form | 2NO, 2NC, DPDT |
| Roller Width | 0.19 in |
| Operating Temp. Range | 10 to 200 deg F |
| Actuator Location | Side |
| Basic Actuator Style (Limit Switch) | Plunger |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Body Material | Zinc Die Cast |
| Roller Material | Steel |
| Operating Force | 6.0 in-lb |
| Electrical Connection | Screw Terminals |
| Voltage Rating | 600VAC/250VDC |
| Depth | 1.79 in |
| Movement | Cam, Slide |
| Width | 1.88 in |
| Roller Dia. | 1/2 in |
| Amps | 10 |
| Travel | Differential Travel 0.045 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Width - Limit Switch | 1.88 in |
| Standards | CCC, CE, CSA, UL |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Length | 1.74 in |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Limit Switch Style | Heavy Duty Limit Switch |
| Number of Poles | 2 |
| NEMA Rating | 1, 12, 13, 3, 4, 4X, 6, 6P |
| Body Style (Limit Switch) | Standard |
| DC Contact Rating | 10 A @ 250 V |
| Contact Form - Limit Switch | 2NO, 2NC |
| Stem Thread - Limit Switch | No Stem |
| Body Height - Limit Switch | 3.69 in |
| Actuator Style | Plunger |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Wiring Entry | 3/4 in NPT |
| AC Contact Rating | 10 A @ 600 V |
| IP Rating | 65, 66, 67 |
| Actuator Location (Limit Switch) | Side |
| Series | LSF |
| Connection Type | Threaded Entry |
| Differential Travel | 0.04 in |
| Arm Width | Not Applicable |
| Arm Material | Not Applicable |
| Arm Depth | Not Applicable |
| Type | Limit Switch |
| Operating Temperature - min | 10 deg F |
| Connection Size | 3/4 in NPT |
| Body Construction | Die Cast Zinc |
| Poles/Contacts | DPDT 2NO 2NC |
| Head/Operator | Push Roller |
| Head Action | Spring Return, Standard |
| Rating - NEMA | NEMA 4X,6P |
| Pre-Travel - Travel To Operate | 0.1 in (2.54mm) PT |
| Differential-Travel - Travel To Reset | 0.035 in (0.89mm) DT |
| Operating Temperature - max | 200 deg F |
| Current Rating - nominal | 10A |
| Electrical Rating - VAC/DC | 10A 600Vac (Vdc Rated) |
| Over-Travel/Total-Travel | 0.19 in (4.83mm) OT |
| Operating Temperature - Maximum | 250 deg F |
| Lamp Type | Not Applicable |
| Roller Position | Not Applicable |
| Number of Mounting Holes | 2 |
| Arm Length - Minimum | Not Applicable |
| Body Width | 1.88 in |
| Directional Movement | Not Applicable |
| Roller Adjustability | Not Applicable |
| Pretravel | 0.1 in |
| Mounting Style | Surface |
| Body Configuration | Non Plug-In |
| Arm Adjustability | Not Applicable |
| Overtravel | 0.19 in |
| Mounting Hole Diameter | 0.2 in |
| Operating Torque - Maximum | Not Applicable |
| Action | Momentary |
| Mounting Hole Vertical Center to Center Distance | 30 mm |
| Body Height | 3.53 in |
| Roller Diameter | 1/2 in |
| Arm Length - Maximum | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 3, 4X |
| Overall Width | 1.88 in |
| Total Travel | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Minimum | 10 deg F |
| Plunger Adjustability | Not Applicable |
| Body Depth | 1.79 in |
| Wireless Network Interface | Not Applicable |
| Overall Depth | 2.44 in |
| Operating Torque - Minimum | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Overall Height | 4.69 in |
| Mounting Hole Horizontal Center to Center Distance | 60 mm |
| Hazardous Location Specification | Not Applicable |
| Includes Actuator | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Reset Travel | Not Applicable |
| Operating Force - Maximum | 26.7 N |
| Package Quantity | 1 |
