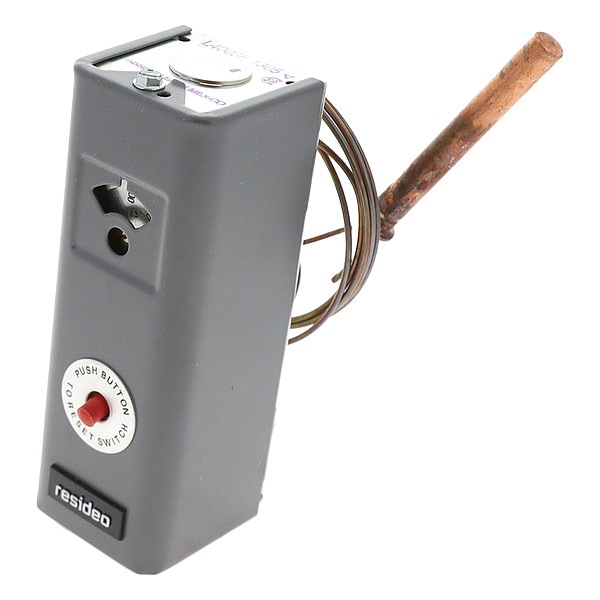

AQUASTAT, BREAK ON RISE, MANUAL RESET, 100F
| Item | Aquastat Controller |
|---|---|
| Standards | CSA File No. LR95329-1, File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, UL Component Recognized |
| Application | High Limit |
| Switch Action | Breaks |
| Locked Rotor Current @ 240V | 30.6 A |
| Full Load Current @ 120V AC | 8 A |
| Housing Color | Gray |
| Overall Depth | 2-1/8 in |
| Differential Temperature | Manual Reset |
| Contact Form | SPST |
| Input Voltage | 120V AC @ 8A, 240V AC @ 5.1A |
| Overall Width | 2 in |
| Burner Circuit Voltage Type | Millivolt |
| Overall Height | 5-5/8 in |
| Sensor Location | Remote |
| Locked Rotor Current @ 120V | 48 A |
| Full Load Current @ 240V AC | 5.1 A |
| Reset Type | Manual Reset |
| Capillary Tube Length | 66 in |
| Product Type | Controller |
| Maximum Control Temperature | 240 deg F |
| Mounting Orientation | Vertical, Horizontal |
| Minimum Control Temperature | 100 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
