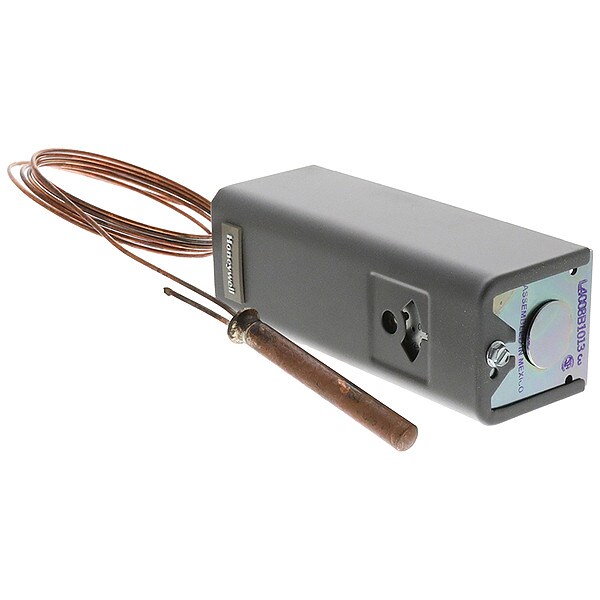

AQUASTAT MAKES ON RISE 100-240F, 5-30F AD
| Item | Circulator Controller |
|---|---|
| Includes | 5 1/2 ft Capillary |
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Application | Circulator |
| Product Type | Circulator Controller |
| Multizone Control Compatible | Not Applicable |
| Overall Height | 5-5/8 in |
| Overall Depth | 2-1/8 in |
| Full Load Current @ 120V AC | 8 A |
| Differential Temperature | 5 Degrees F to 30 Degrees F Adjustable |
| Maximum Control Temperature | 240 deg F |
| Switch Action | Makes |
| Spud Size | Not Applicable |
| Sensor Location | Remote |
| Locked Rotor Current @ 240V | 30.6 A |
| Reset Type | Automatic Reset |
| Full Load Current @ 240V AC | 5.1 A |
| Auto/Manual Switch Included | Yes |
| Locked Rotor Current @ 120V | 48 A |
| Minimum Control Temperature | 100 deg F |
| Number of Switches | 1 |
| Overall Width | 2 in |
| Burner Circuit Voltage Type | Millivolt |
| Capillary Tube Length | 66 in |
| Contact Form | SPST |
| Mounting Orientation | Vertical, Horizontal |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
