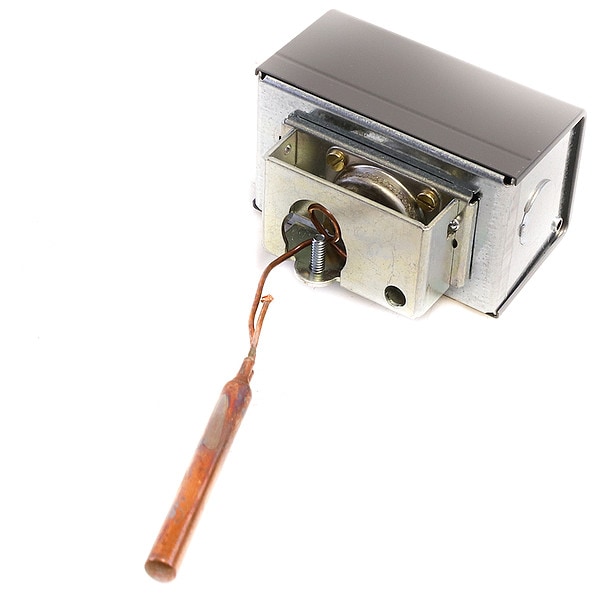

AQUASTAT, RANGE 100 TO 200F, 1-1/2 TO 3" I
| Item | Immersion Controller |
|---|---|
| Includes | Siphon Loop |
| Standards | MBPR2, MP466, UL Listed |
| Application | High Limit |
| Product Type | Controller |
| Burner Circuit Voltage Type | Millivolt |
| Differential Temperature | 8 Degrees F Fixed |
| Overall Depth | 3 in |
| Contact Form | Not Applicable |
| Reset Type | Automatic Reset |
| Locked Rotor Current @ 120V | 48 A |
| Minimum Control Temperature | 100 deg F |
| Insulation Depth | 1-1/2 in, 3 in |
| Full Load Current @ 120V AC | 8 A |
| Mounting Orientation | Vertical |
| Locked Rotor Current @ 240V | 24 A |
| Full Load Current @ 240V AC | 4 A |
| Multizone Control Compatible | Not Applicable |
| Switch Action | Breaks |
| Auto/Manual Switch Included | Yes |
| Capillary Tube Length | 3 in |
| Spud Size | 1/4 in NPT |
| Number of Switches | 1 |
| Maximum Control Temperature | 200 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
