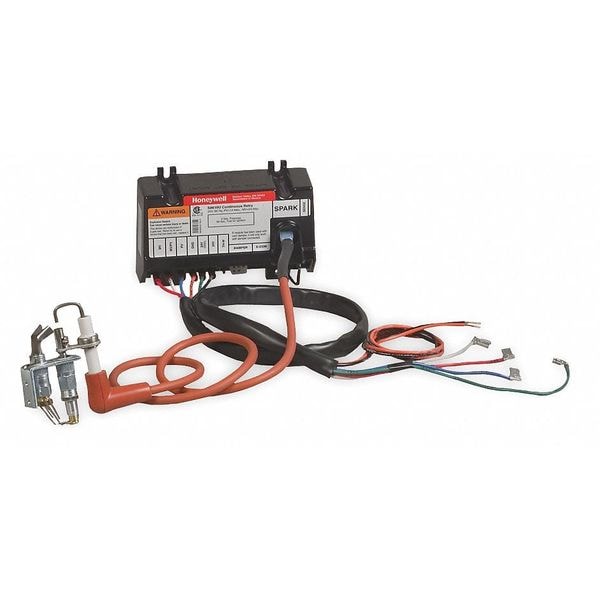

Conversion Kit, Inlet/Outlet 1/2 x 1/2 In
| Width (In.) | 3-7/8 |
|---|---|
| Retries | Continuous |
| Includes | Gas Valve, Ignition Cable, Ignition Module, Pilot Burner Hardware, Wiring Harness |
| Method of Opening | Standard |
| Inlet/Outlet (In.) | 1/2 x 1/2 |
| Lockout Time (Sec.) | 15, 90 |
| Depth (In.) | 2-5/8 |
| Amps AC | 0.7 A |
| Gas Type | LP/NG |
| Item | Intermittent Pilot Ignitor |
| Height (In.) | 3-15/16 |
| Electrical Ratings | 24V AC |
| Pressure Setting Range (In. WC) | 3.5 |
| For Use With | Residential, Commercial Heating Equipment |
| Voltage | 24 V |
| Type | Intermittent Pilot |
| Prepurge Time (Sec.) | 0, 30 |
| Control Volts | 24 V |
| Operation Description | Convert Conventional Standing Pilot Systems To Intermittent Pilot Systems, After Trial For Ignition, Pilot Gas Shuts Off For 5 Minutes, Then Another Trial For Pilot Ignition Takes Place |
| BtuH Capacity | 150,000 |
| Electrical Connections | 30 in Wiring Harness With Stud Terminal And 1/4 in Quick-Connect Terminal |
| Bracket | No |
| Product Type | Intermittent Pilot Ignitor |
| Automatic Reset Time | 5 min |
| Lock Out Time | 15 sec |
| Frequency | 60 Hz |
| Ignition Cycle Time | 90 seconds (Spark) |
| Thermostat Anticipator Setting | Thermostat Anticipator |
| For Fuel Type | Gas, LP |
| Minimum Operating Temperature | -40 Degrees F |
| Main Valve Current Output | 24 A |
| Flame Sensor Current Output | 1 uA |
| Number of Retries | 3 |
| Maximum Operating Temperature | 165 deg F |
| Replacement Type | Universal |
| Control Voltage | 24V AC |
| Pre-Purge Time | 30 sec |
| Input Voltage | 24 V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
