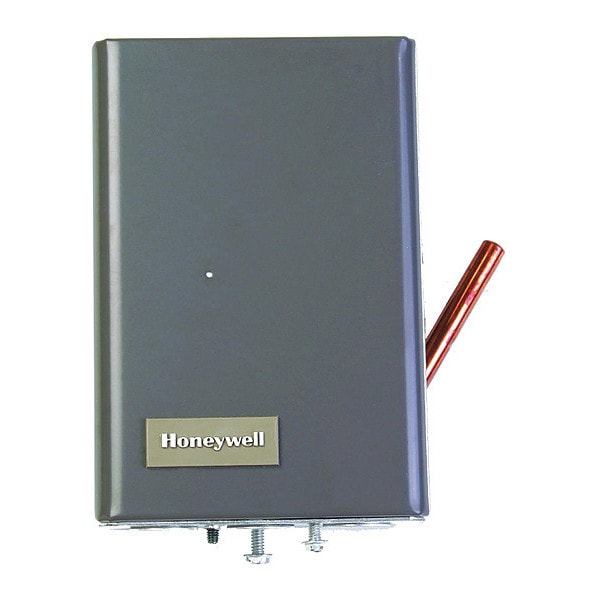

DUAL AQUASTAT RELAY WITH MOLEX PLUG 120V
| Item | Immersion Controller |
|---|---|
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Includes | Heat-Conductive Compound, Molex Plug |
| Application | High Limit |
| Input Voltage | 120V AC |
| Product Type | Controller |
| Minimum Control Temperature | 180 deg F |
| Overall Depth | 3-1/8 in |
| Capillary Tube Length | 4-1/2 in |
| Overall Width | 4-3/8 in |
| Multizone Control Compatible | Not Applicable |
| Mounting Orientation | Vertical |
| Auto/Manual Switch Included | Yes |
| Insulation Depth | 1-1/2 in, 3 in |
| Burner Circuit Voltage Type | Voltage Low Voltage |
| Locked Rotor Current @ 240V | 22.2 A |
| Reset Type | Automatic Reset |
| Full Load Current @ 120V AC | 7.4 A |
| Full Load Current @ 240V AC | 3.7 A |
| Overall Height | 6-1/8 in |
| Differential Temperature | 15 Degrees F Fixed |
| Locked Rotor Current @ 120V | 44.4 A |
| Maximum Control Temperature | 240 deg F |
| Spud Size | Not Applicable |
| Contact Form | SPST |
| Number of Switches | 6 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
