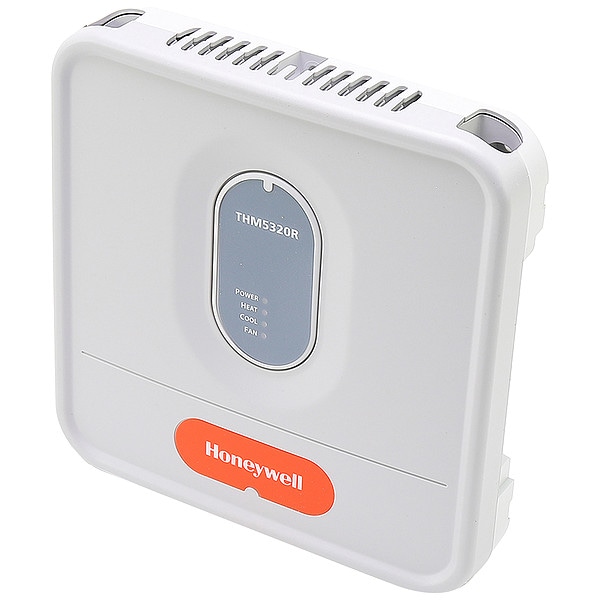

Equipment Interface Module, 3 H, 2 C, LED, 18/30VAC
| Item | Equipment Interface Module |
|---|---|
| Voltage | 18/30VAC |
| Stages Heat | 3 |
| Color | Gray |
| Control Range | -40 to 165 deg F |
| Stages Cool | 2 |
| Height | 8-1/8 in |
| Width | 8 in |
| Power Method | LED |
| Type | Wireless |
| Depth (In.) | 1-5/8 |
| Height (In.) | 8-1/8 |
| Input Voltage | 18 to 30 Vac |
| For Use With | 3RCL7 or 3RCL8 |
| Remarks | Controls up to 3 Heat/2 Cool Heat Pump Systems or up to 2 Heat/2 Cool Conventional Systems When Used with the Wireless FocusPRO Thermostat |
| Operating Temp. Range (F) | -40 to 165 |
| Width (In.) | 8 |
| Terminal Designations | C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS |
| Wireless | Yes |
| Compatible Brand and Series | FocusPRO |
| Overall Length | 8 in |
| Overall Height | 8-1/8 in |
| Function | Control 3H / 2C stages in a heat pump system or 2H / 2C in a conventional system |
| Compatible Manufacturer Model Number | REM5000R1001, TH5320R1002, TH6320R1004 |
| Overall Depth | 1-7/8 in |
| Wireless System Compatibility | RedLink |
| Accessory Type | Equipment Interface Module |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
