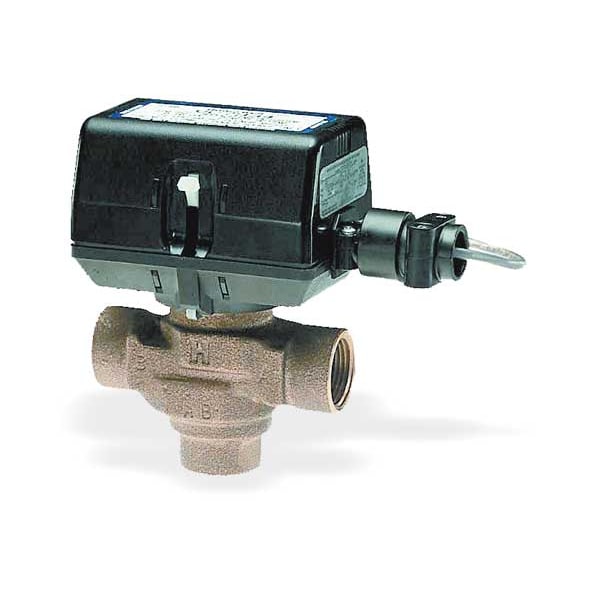

Floating Actuator for VC Series Valves
| Item | Electric Zone Valve Actuator |
|---|---|
| Type | Floating Low Voltage |
| Input Voltage | 24V AC |
| For Use With | VC Series Valves, 4ATD8, 4ATD9, 4ATE1 |
| Depth (In.) | 2-11/16 |
| Width (In.) | 3-23/32 |
| Includes | Manual |
| Height (In.) | 2-3/4 |
| Electrical Connections | Plenum Rated Wire Conduit |
| Hz | 50/60 |
| Electrical Connection | Plug-In |
| Overall Width | 3-3/4 in |
| Compatible with Series | VC |
| Product Type | Electric Valve Actuator |
| Overall Depth | 2-3/4 in |
| Frequency | 50/60 Hz |
| Overall Height | 2-3/4 in |
| Output Signal | Not Applicable |
| Rated Torque | 40 in-lb |
| Maximum Operating Temperature | 150 deg F |
| NEMA Rating | Not Rated |
| Valve Application | Damper, Valve |
| Power Consumption | 6 VA |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Time to Close | 120 sec |
| Signal Type | Floating Point |
| Number of Auxiliary Switches | 0 |
| Contact Form | SPST |
| Electrical Connection Type | Cable |
| Spring Return | Non-Spring Return |
| IP Rating | IP40 |
| Voltage | 24 V |
| Mounting Style | Direct Mount |
| Torque | Not Rated |
| Electrical Lead Length | 5 ft |
| Stroke Length | 3/8 in |
| Operating Temperature - Maximum | 150 deg F |
| Compatible Series | VC |
| Return Action | Non-Spring Return |
| Control Signal | Floating Point |
| Cycle Time | 120 sec |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
