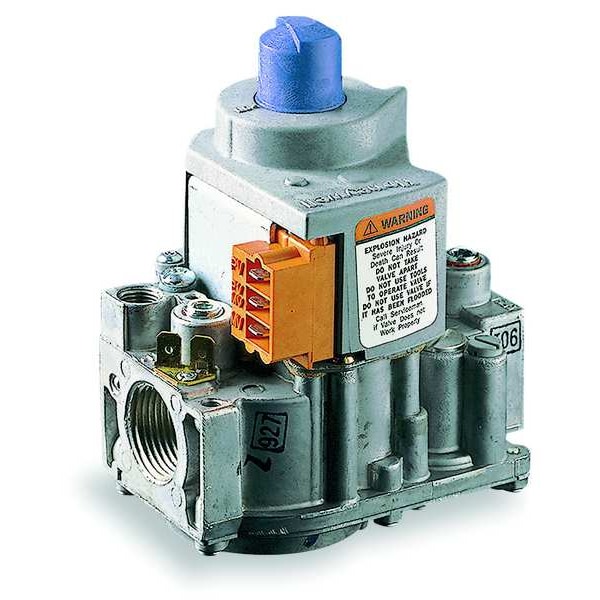

Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc
| BtuH Capacity | 300,000 BtuH |
|---|---|
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Reducer Bushing Kit | 3/4 x 1/2 in and 1/2 x 3/8 in |
| Valve Type | Standard Opening |
| Amps AC | 0.7 A |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 3.5 in wc |
| Flow Direction | Straight-Thru |
| Includes | (2) 3/4 x 1/2 in and (1) 1/2 x 3/8 in Reducer Bushings, Natural to LP Gas Conversion Kit |
| Max. Inlet Pressure | 0.5 psi |
| Side Taps | Yes |
| Inlet Pressure Tap | Yes |
| Standards | CSA International: 112395, UL Component Recognized MCCZ2.MH5323 |
| Includes On/Off Switch | Not Applicable |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Opening Characteristic | Fast Opening |
| Current | 0.7 A |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Heating Capacity - Maximum | 415,000 BtuH |
| Includes Side Taps | Side Taps Not Included |
| ANSI Rating | ANSI Z223.1 NFPA No. 54 |
| Operating Temperature - Minimum | -40 deg F |
| Pressure Tap Connection Type | NPT |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Port Connection Gender | Female |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Overall Height | 5-3/8 in |
| Includes Pressure Regulator | Pressure Regulator Included |
| Reducer Bushings Included | (2) 3/4 x 1/2 in, 1/2 x 3/8 in |
| Port Connection Type | NPT |
| Sensing Type | Flame Sensor |
| Pressure Tap Connection Size | 1/8 in |
| Voltage | 24 V AC |
| Valve Design | Single |
| For Media | Liquid Propane, Natural Gas |
| Overall Depth | 2-11/16 in |
| Overall Length | 4-1/16 in |
| Electrical Connections | Quick Connect Terminal |
| Includes Conversion Kit | Conversion Kit Included |
| Operating Temperature - Maximum | 175 deg F |
| Installation Orientation | Vertical |
| Manufacturer Series | VR8345 |
| Port Connection Size | 3/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
