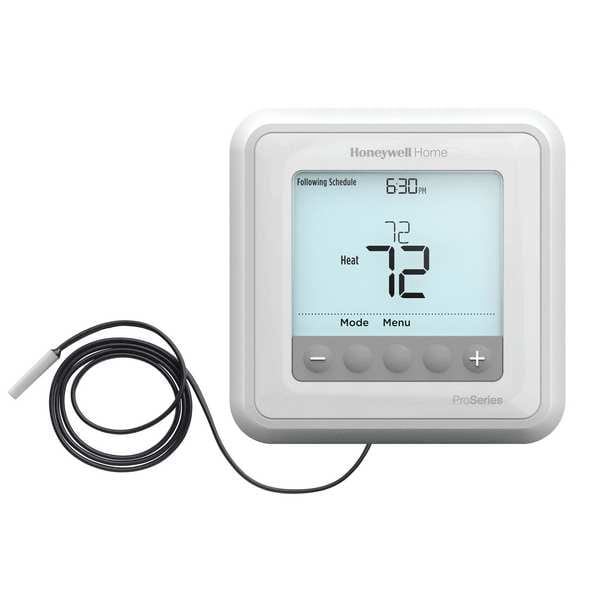

Hydronic Programmable Thermostat, 7, 5-1-1 Programs, 1 H, None C, Hardwired/Battery, 24VAC
| Item | Hydronic Programmable Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 1 |
| Mounting Type | UWP Mounting System |
| Color | White |
| Control Range | 40 to 90 deg F |
| System Switching | Heat-Off |
| Stages Cool | None |
| Height | 6 in |
| Width | 5 in |
| Dual Transformer Compatible | No |
| Power Method | Battery, Hardwired |
| 750mV Compatible | No |
| Programs per Week | 7, 5-1-1 |
| Display Color | Light Blue |
| Programmable Fan | No |
| Includes | (2) AA Batteries, Universal Mounting System, Slab Sensor, J Box Adapter, Decorative Cover Plate, Screws and Anchors |
| Fan Switching | Auto-On-Circulate |
| Humidification Control | No |
| Automatic Changeover | No |
| Key Pad Lockout | Yes |
| Terminal Designations | RC, R, C, W, S, S |
| Temp. Settings per Day | 2 |
| Display Type | LCD, Backlit |
| WiFi Capability | No |
| Features | T6 Pro Hydronic Series |
| Dehumidification Control | No |
| Display Size | 5-7/16 sq in |
| Temperature Limiting | Yes |
| Filter Indicator | No |
| Batteries Included | Yes |
| For Use With | In-Floor Heating System |
| Low Battery Indicator | Yes |
| Battery Backup | Yes |
| Temporary Program Override | Yes |
| Depth | 2-17/64 in |
| Temporary Temperature Hold | Yes |
| Control Type | Push Button |
| Stages | 1H Heat Pump |
| Differential Heat | 1 deg F |
| Sensor Location | Remote |
| Mounting Direction | Horizontal |
| Application | Heat Only |
| Maximum Operating Temperature | 120 deg F |
| Differential Type | Fixed |
| Operating Humidity Range | 5% to 90% RH |
| Includes Positive Off | Yes |
| Digit Size | Easy Read |
| Overall Height | 4-1/16 in |
| Application/Stages | Heat Only, 1H Heat Pump |
| Programming Capability | 5-1-1, 5-2, 7-Day, Not Programmable |
| Overall Depth | 1-1/8 in |
| Overall Width | 4-1/16 in |
| Thermostat Type | Low Voltage |
| Battery Type | AA Batteries |
| System/Fan Settings | No Fan Setting, Heat-Off |
| Maximum Operating Humidity | 90 % |
| Electrical Connection Type | Hardwired |
| Shape | Square |
| Temperature Sensitivity | +/-1 deg F |
| Fan Settings | No Fan Setting |
| Operating Temperature Range | 32 to 120 deg F |
| Minimum Operating Humidity | 5 % |
| Number of Heating Stages - Heat Pump System | 1 |
| System Settings | Heat-Off |
| Temperature Readout | Yes |
| Temperature Control Range | 40 to 90 deg F |
| Backlit Screen | Yes |
| Millivolt Compatible | No |
| Housing Color | White |
| Wireless | No |
| Minimum Operating Temperature | 32 deg F |
| Compatible System Type | Hydronic Systems |
| Minimum Control Temperature | 40 deg F |
| Includes Batteries | Yes |
| Temperature Differential | 1 Degrees F |
| Mounting Direction/Shape | Horizontal |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Control Temperature | 90 deg F |
| Frequency | 50 Hz, 60 Hz |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
