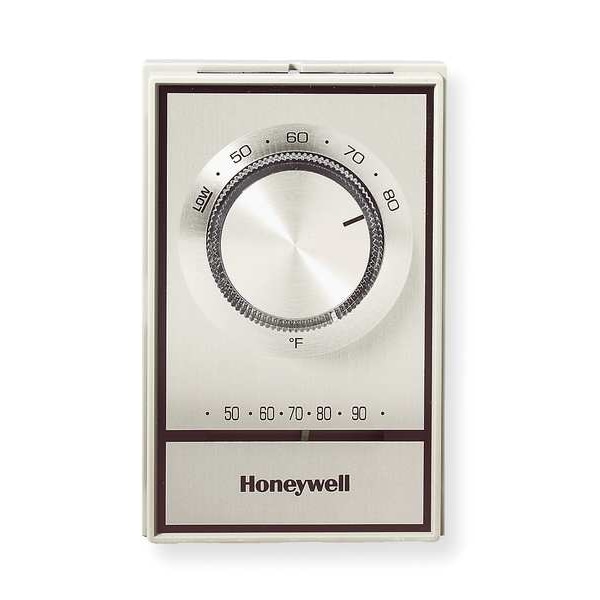

Line Volt Mechanical Tstat, Open on Rise, 40 Degrees to 80 Degrees F, SPST, 120 to 277V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | +/-3 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 40 to 80 deg F |
| Switch Type | SPST |
| Color | Beige |
| Width | 2-29/32 in |
| Height | 4-17/32 in |
| Thermostat Voltage | 120 to 277 V AC |
| Item | Line Volt Mechanical Tstat |
| Remote Sensing Capability | No |
| Resistive Amps @ 208VAC | 22 A |
| Includes | Extra Knob Decal, Locking Cover, Range Stops |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Programmable | No |
| Depth | 1-15/16 in |
| Number of Switches | 1 |
| Full Load Amps @ 120VAC | 15 A |
| Contact Rating Resistive @ 120V | 22 A |
| Thermostat Switch Type | SPST |
| Contact Rating Resistive @ 277V | 19 A |
| Remote Sensing Bulb Included | No |
| Thermostat Heating/Cooling | Heating |
| Standards | CSA File No. LR1322, Guide No. XAPX, Underwriters Laboratories Listed File No. E47434 |
| Control Range | 40 to 80 deg F |
| Mounting | Standard 2 x 4" Electrical Box |
| For Use With | Non-Inductive Electric Heating Loads, Electric Baseboard, Heat Cable or Ceiling Panels |
| Thermostat Type | Line Voltage |
| Application | Heat Only |
| Features | Self-Cleaning, Slide Action, Noiseless Operation |
| Type | Heating Only |
| Control Type | Exposed Dial |
| Voltage Range | 120 to 277 VAC |
| Display | Analog |
| Lead Material | Copper |
| Maximum Operating Temperature | 80 deg F |
| Maximum Control Temperature | 80 deg F |
| Contact Type | Snap Action |
| Minimum Control Temperature | 40 deg F |
| Amperage | 15 A |
| Remote Control Functions | No Remote Control Included |
| Stages | 1H |
| Number of Poles | 1 |
| Number of Heating Stages | 1 |
| Switch Type/Action | Open, SPST on Rise |
| Lead Length | 6 in |
| Differential Type | Fixed |
| Overall Width | 2-7/8 in |
| Overall Depth | 1-15/16 in |
| Resistive Amps @ 208V AC | 22 A |
| Enclosure Color | Beige |
| Temperature Control Range | 40 to 80 deg F |
| Operating Temperature Range | 40 to 80 deg F |
| Housing Color | Beige |
| Temperature Readout | Yes |
| Minimum Operating Temperature | 40 deg F |
| Mounting Direction | Vertical |
| Temperature Scale | Fahrenheit |
| Overall Height | 4-9/16 in |
| Enclosure NEMA Rating | Not Rated |
| Temperature Differential | 3 Degrees F |
| Enclosure Finish | Brush Gold |
| Frequency | 60 Hz |
| Contact Rating | 120V AC, 208V AC, 240V AC, 277V AC |
| Electrical Connection Type | Hardwired |
| Fan Settings | No Fan Setting |
| Includes Positive Off | Yes |
| System Settings | On |
| Compatible System Type | Electric Heating |
| Full Load Amps @ 120V AC | 15 A |
| Housing Material | Plastic |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
