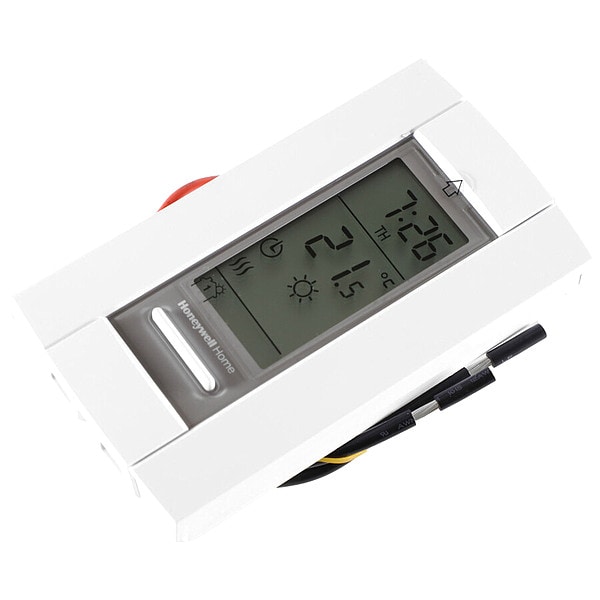

Line Volt Tstat Heat, 86to32F, 208VAC
| Item | Thermostat |
|---|---|
| Voltage | 208 V AC, 240 V AC |
| Control Type | Push Button, Slide Switch |
| Stages | 1H |
| Key Pad Lockout | No |
| Display Type | Digital |
| Overall Depth | 7/8 in |
| Electrical Connection Type | Hardwired |
| Number of Heating Stages | 1 |
| Overall Width | 2-3/4 in |
| Backlit Screen Color | Yes |
| Programming Capability | 7-Day |
| Thermostat Type | Line Voltage |
| Maximum Control Temperature | 86 deg F |
| Switch Action | Open on Rise |
| Temperature Control Range | 32 to 86 deg F |
| System Settings | On-Standby |
| Temperature Differential | 1 Degrees F |
| Temperature Readout | Yes |
| Mounting Direction | Vertical |
| Temperature Scale | Fahrenheit, Celsius |
| Includes Positive Off | Yes |
| Frequency | 50 Hz, 60 Hz |
| Minimum Control Temperature | 32 deg F |
| Overall Height | 4-7/8 in |
| Application | Heat Only |
| Switch Type/Action | Open, SPST on Rise |
| Backlit Screen | Yes |
| Screen Height | Not Applicable |
| Switch Type | SPST |
| Temperature settings per day | 4 |
| Screen Width | Not Applicable |
| Compatible System Type | Electric Heating |
| Housing Color | White |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
