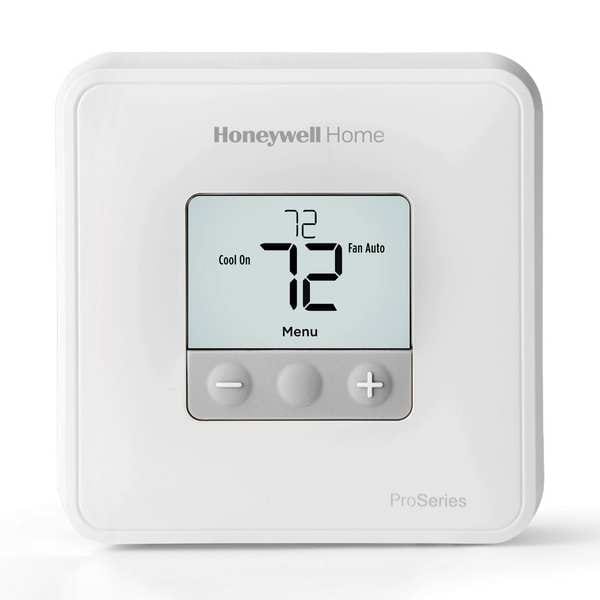

Low Voltage Thermostat, 1 H, 1 C, Hardwired/Battery, 24VAC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 1 |
| Color | White |
| Control Range | 32 to 99 deg F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Height | 2-1/4 in |
| Width | 5-1/8 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery, Hardwired |
| 750mV Compatible | No |
| Filter Indicator | No |
| Depth | 6-1/8 in |
| Temporary Temperature Hold | No |
| Display | LCD |
| Batteries Included | Yes |
| Includes | (2) AA Batteries, Screws and Wall Anchors |
| Key Pad Lockout | No |
| Humidification Control | No |
| Automatic Changeover | No |
| For Use With | Heating and Cooling |
| Programmable Fan | No |
| Occupancy Sensor | No |
| Temporary Program Override | No |
| Fan Switching | Auto-on |
| Temperature Limiting | No |
| Dehumidification Control | No |
| Terminal Designations | Y,G,C,W,R |
| Battery Backup | No |
| Low Battery Indicator | Yes |
| Display Type | Digital |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Control Type | Push Button |
| Mounting Direction/Shape | Horizontal |
| Number of Heating Stages - Heat Pump System | 1 |
| Frequency | 50 Hz, 60 Hz |
| Mounting Hole Diameter | 3/16 in, 7/32 in |
| Temperature Scale | Fahrenheit, Celsius |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Temperature Control Range | 32 to 99 deg F |
| Battery Type | AA Batteries |
| Shape | Square |
| Minimum Operating Humidity | 5 % |
| Compatible System Type | Electric Forced Air Furnaces, Hydronic Systems, Gas Forced Air Furnaces, Millivolt |
| Millivolt Compatible | No |
| Number of Zones | 1 |
| Application | Cool, Heat |
| Includes Positive Off | Yes |
| Electrical Connection Type | Hardwired |
| Number of Cooling Stages - Conventional System | 1 |
| Backlit Type | Press Button |
| Thermostat Type | Low Voltage |
| Minimum Control Temperature | 32 deg F |
| System Settings | Cool-Heat-Off |
| Contact Rating | 20 V AC, 30 V AC |
| Mounting Direction | Horizontal |
| Programming Capability | Not Programmable |
| Temperature Differential | 1 Degrees F |
| Maximum Operating Humidity | 90 % |
| Housing Color | White |
| Operating Temperature Range | 32 to 120 deg F |
| Operating Humidity Range | 5% to 90% |
| Amperage | 0.02 to 1.0 A |
| Maximum Control Temperature | 99 deg F |
| Changeover Type | Manual |
| Number of Cooling Stages - Heat Pump System | 1 |
| Overall Height | 4-1/16 in |
| Filter Change Reminder | No |
| Fan Settings | Auto-On |
| Number of Heating Stages - Conventional System | 1 |
| Overall Depth | 1-7/16 in |
| Maximum Operating Temperature | 120 deg F |
| Digit Size | Standard |
| Overall Width | 4-1/16 in |
| Temperature Sensitivity | +/-1 deg F |
| Minimum Operating Temperature | 32 deg F |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
