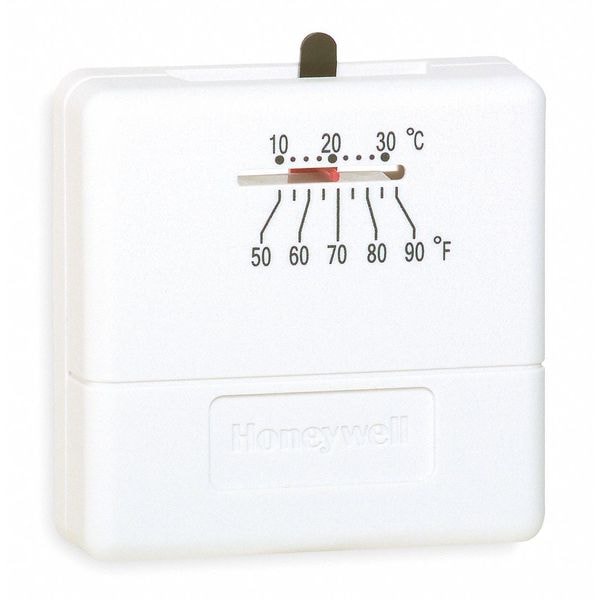

Low Voltage Thermostat, 1 H, Hardwired, 24VAC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 1 |
| Mounting Type | Square |
| Color | Premier White |
| Control Range | 50 to 90 deg F |
| System Switching | SPST |
| Height | 3 in |
| Width | 3 in |
| Dual Transformer Compatible | No |
| Power Method | Hardwired |
| 750mV Compatible | No |
| Depth | 1-1/4 in |
| Features | Mercury Free |
| Automatic Changeover | No |
| Fan Switching | No |
| Mounting | Horizontal |
| Terminal Designations | R, W |
| For Use With | Gas, Oil, Forced Air |
| Battery Backup | No |
| Humidification Control | No |
| Dehumidification Control | No |
| Temporary Temperature Hold | No |
| Key Pad Lockout | No |
| Includes | Dealer Logo Pocket |
| Temporary Program Override | No |
| Temperature Limiting | No |
| Display Type | Analog |
| Control Type | Slide Switch |
| Type | Mechanical Nonprogrammable Conventional Systems |
| Stages | 1H Conventional |
| Includes Positive Off | No |
| Number of Cooling Stages - Conventional System | 0 |
| Overall Depth | 7/8 in |
| Mercury Free | Yes |
| Temperature Control Range | 50 to 90 deg F |
| Temperature Sensitivity | +/-3 deg F |
| Millivolt Compatible | No |
| Housing Color | White |
| Thermostat Type | Low Voltage |
| Contact Type | Snap Action |
| Minimum Control Temperature | 50 deg F |
| Overall Width | 3-1/8 in |
| Mounting Direction | Vertical |
| Temperature Scale | Fahrenheit |
| Maximum Control Temperature | 90 deg F |
| Application | Heat Only |
| Fan Settings | No Fan Setting |
| System Settings | On |
| Electrical Connection Type | Hardwired |
| Operating Humidity Range | 0% to 90% |
| Minimum Operating Humidity | 0 % |
| Maximum Operating Humidity | 90 % |
| Mounting Direction/Shape | Square |
| Overall Height | 3-1/8 in |
| System/Fan Settings | No Fan Setting, On |
| Number of Cooling Stages - Heat Pump System | 0 |
| Shape | Square |
| Temperature Readout | No |
| Number of Heating Stages - Heat Pump System | 0 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces |
| Number of Heating Stages - Conventional System | 1 |
| Digit Size | Standard |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
