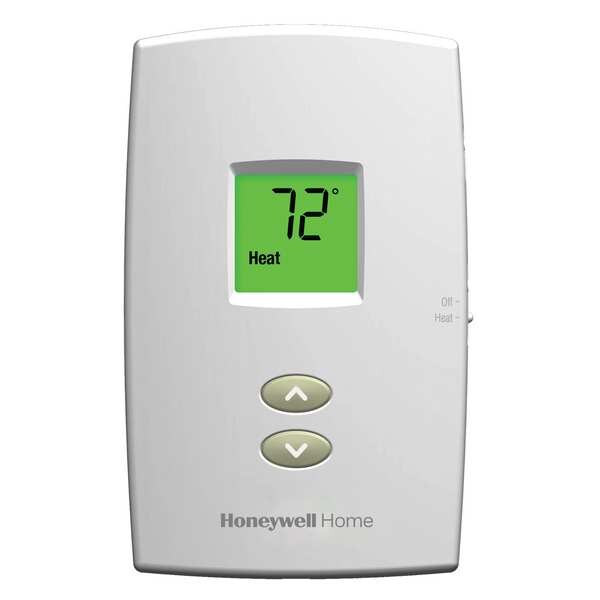

Low Voltage Thermostat, 1 H, Hardwired/Battery, 20/30VAC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 1 |
| Mounting Type | Vertical |
| Color | White |
| Control Range | Standard Selection of 40 Degrees to 90 Degrees F or Garage Selection of 35 Degrees to 90 Degrees F |
| System Switching | Heat-Off |
| Height | 4-11/16 in |
| Width | 2-7/8 in |
| Dual Transformer Compatible | No |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Fan Switching | Auto-on |
| Temporary Temperature Hold | No |
| Temperature Limiting | No |
| Low Battery Indicator | Yes |
| Dehumidification Control | No |
| Batteries Included | Yes |
| Filter Indicator | No |
| Programmable Fan | No |
| Depth | 1-1/8 in |
| Terminal Designations | R, C, W |
| Humidification Control | No |
| Remote Sensing Capability | No |
| Automatic Changeover | No |
| Battery Backup | Yes |
| Temporary Program Override | No |
| Display | 1.32 sq in |
| Key Pad Lockout | No |
| Mounting | Vertical |
| Display Type | Digital |
| Control Type | Push Button, Slide Switch |
| Type | Non Programmable |
| Stages | 1H Conventional |
| Number of Cooling Stages - Conventional System | 0 |
| Temperature Control Range | 40 to 90 deg F |
| Minimum Operating Temperature | 32 deg F |
| Thermostat Type | Low Voltage |
| Mounting Direction | Vertical |
| Number of Heating Stages - Conventional System | 1 |
| Digit Size | Standard |
| Maximum Operating Humidity | 90 % |
| Battery Type | AAA Batteries |
| Amperage | 0.02 to 1.0 A |
| Electrical Connection Type | Hardwired |
| Frequency | 50 Hz, 60 Hz |
| Maximum Control Temperature | 90 deg F |
| Number of Cooling Stages - Heat Pump System | 0 |
| Mounting Hole Diameter | 3/16 in, 7/32 in |
| Temperature Scale | Fahrenheit, Celsius |
| Operating Temperature Range | 32 to 120 deg F |
| Housing Color | White |
| Number of Zones | 1 |
| Filter Change Reminder | No |
| Overall Depth | 1-1/8 in |
| Number of Heating Stages - Heat Pump System | 0 |
| Contact Rating | 20 V AC, 30 V AC |
| Millivolt Compatible | Yes |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt |
| Includes Positive Off | Yes |
| System Settings | On-Off |
| Programming Capability | Not Programmable |
| Overall Width | 2-7/8 in |
| Operating Humidity Range | 5% to 90% |
| Shape | Rectangle |
| Mounting Direction/Shape | Vertical |
| Minimum Control Temperature | 40 deg F |
| Application | Heat Only |
| Maximum Operating Temperature | 120 deg F |
| System/Fan Settings | No Fan Setting |
| Overall Height | 4-11/16 in |
| Minimum Operating Humidity | 5 % |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
