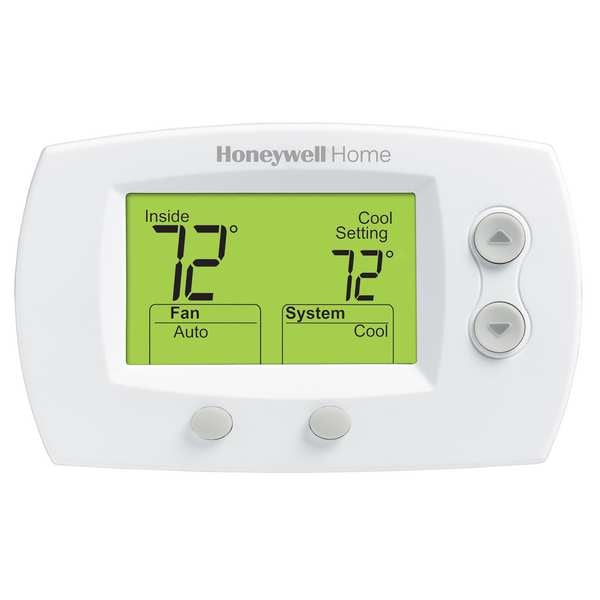

Low Voltage Thermostat, 2 H, 2 C, Hardwired/Battery, 24VAC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 2 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 40 to 99 deg F |
| System Switching | Auto-Heat-Cool-Off |
| Stages Cool | 2 |
| Height | 3-9/16 in |
| Width | 5-13/16 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Fan Switching | Auto-on |
| Low Battery Indicator | Yes |
| Batteries Included | Yes |
| Humidification Control | No |
| Battery Backup | Yes |
| Terminal Designations | R,RC,C,Y1,Y2-E,W-O/B,W2-Aux,G,L |
| Display | Large Character Display, 5.09 sq in, LCD, Backlit |
| Footnotes | 3, 4, 7 |
| Depth | 1-1/2 in |
| Includes | 2 AA Batteries |
| Mounting | Horizontal |
| Display Type | Digital |
| Key Pad Lockout | No |
| Temporary Temperature Hold | Yes |
| Dehumidification Control | No |
| Temperature Limiting | Yes |
| Stages | 2H/2C Conventional, 2H/1C Heat Pump |
| Type | C, HP, Digital Nonprogrammable Multi Stage H |
| Control Type | Push Button |
| Overall Width | 5-13/16 in |
| Application | Cool, Heat |
| Overall Height | 3-9/16 in |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Control Range | 40 to 99 deg F |
| System/Fan Settings | Auto, Auto-Cool-Emergency Heat-Heat-Off |
| Digit Size | Easy Read |
| Shape | Rectangle |
| Mounting Direction/Shape | Horizontal |
| Number of Cooling Stages - Conventional System | 2 |
| Fan Settings | Auto |
| Maximum Operating Humidity | 90 % |
| Backlit Type | Press Button |
| Electrical Connection Type | Hardwired |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Frequency | 50 Hz, 60 Hz |
| Compatible System Type | Heat Pump with Aux, Electric Forced Air Furnaces, Millivolt |
| Mounting Direction | Horizontal |
| Contact Rating | 24 V AC |
| Maximum Control Temperature | 99 deg F |
| Number of Heating Stages - Conventional System | 2 |
| Includes Positive Off | Yes |
| Number of Heating Stages - Heat Pump System | 2 |
| Millivolt Compatible | Yes |
| Operating Humidity Range | 5% to 90% |
| Temperature Sensitivity | +/-1 deg F |
| Overall Depth | 1-1/2 in |
| Thermostat Type | Low Voltage |
| Temperature Differential | 1 Degrees F |
| Minimum Operating Temperature | 32 deg F |
| Housing Color | White |
| Battery Type | AA Batteries |
| Number of Zones | 1 |
| Number of Cooling Stages - Heat Pump System | 1 |
| Changeover Type | Manual, Automatic |
| Maximum Operating Temperature | 120 deg F |
| Minimum Operating Humidity | 5 % |
| Minimum Control Temperature | 40 deg F |
| Operating Temperature Range | 32 to 120 deg F |
| Programming Capability | Not Programmable |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
