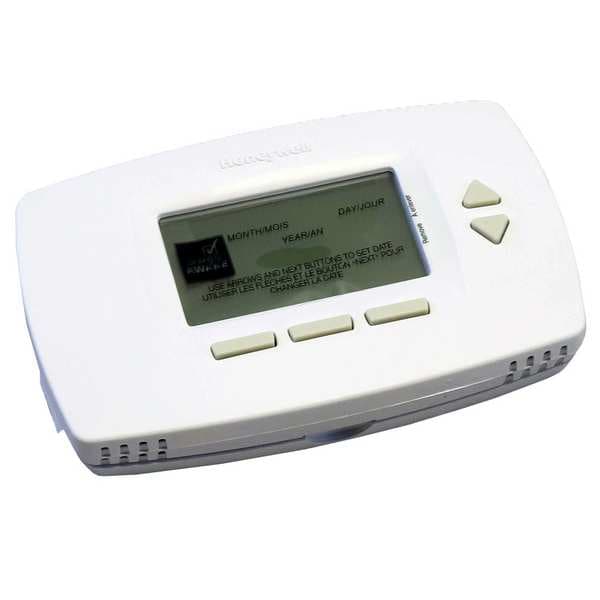

MultiPro 3 Speed Fan Coil
| Item | Fan Coil Thermostat |
|---|---|
| Color | White |
| Type | Low Voltage |
| Voltage | 24V |
| System Switching | Auto-Heat-Cool-Off |
| Application | Heat and Cool |
| Thermostat Control Range | 50 Degrees to 90 Degrees F |
| Temp. Settings per Day | 1 |
| Fan Switching | Auto-On, Fan Coil, Hi-Med-Low, PTAC, Hi-Low |
| Mounting Position | Direct Mount On Junction Box |
| Thermostat Number of Speeds | 3 |
| Switch Action | Open/Close on Rise |
| Width (In.) | 6 |
| Thermostat Number of Pipes | 2 or 4 |
| Height (In.) | 3-3/4 |
| Depth (In.) | 1-3/8 |
| Display | LCD |
| Enclosure Type | Plastic |
| Includes | Pre-Wired For Easy Installation |
| Rated For Pilot Duty | No |
| Thermostat Item | Fan Coil Thermostat |
| Thermostat Heating/Cooling | Heating/Cooling |
| Special Information | 3 Speed Fan Control |
| Thermostat Switch Type | 5 Relays |
| Temperature Limiting | Yes |
| Dual Transformer Compatible | No |
| Overall Width | 6 in |
| Humidification Control | No |
| Switch Type | 5 Relays |
| Housing Color | White |
| Control Type | Button |
| Key Pad Lockout | Yes |
| Temporary Program Override | Yes |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Terminal Designations | C, G, G2, G3, O/B, R, Rc, S1, S2, W1, Y |
| Display Type | Digital |
| Number of Relay Inputs | 5 |
| Dehumidification Control | Yes |
| Housing Material | Plastic |
| Overall Height | 3-3/4 in |
| Overall Depth | 1-3/8 in |
| Minimum Control Temperature | 40 Degrees F |
| Differential Type | Adjustable |
| Number of Pipes | 2 or 4 |
| Application/Stages | Heat and Cool, 2H/1C |
| Temperature Differential | 1.5 Degrees F |
| Temperature Control Range | 0 Degrees to 120 Degrees F |
| Operating Humidity Range | 5 to 90 % |
| Digit Size | Standard |
| Thermostat Type | Low Voltage |
| Stages | 2H/1C |
| Sensor Location | Remote |
| Operating Temperature Range | 0 Degrees to 120 Degrees F |
| Includes Positive Off | Yes |
| Mounting Direction | Horizontal |
| Shape | Rectangle |
| Backlit Screen Color | Green |
| System/Fan Settings | Auto-Cool-Emergency Heat-Heat-Off, Hi-Med-Low |
| Backlit Screen | Yes |
| Maximum Control Temperature | 99 Degrees F |
| Contact Rating | 24V AC |
| Temperature settings per day | 1 |
| Temperature Scale | Celsius/Fahrenheit |
| Changeover Type | Automatic and Manual |
| Number of Zones | 1 |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Temperature Readout | Yes |
| Mounting Direction/Shape | Horizontal |
| Electrical Connection Type | Screw Terminal |
| Programming Capability | 7-Day |
| Fan Settings | Hi-Med-Low |
| Compatible System Type | Fan Coil Unit |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
