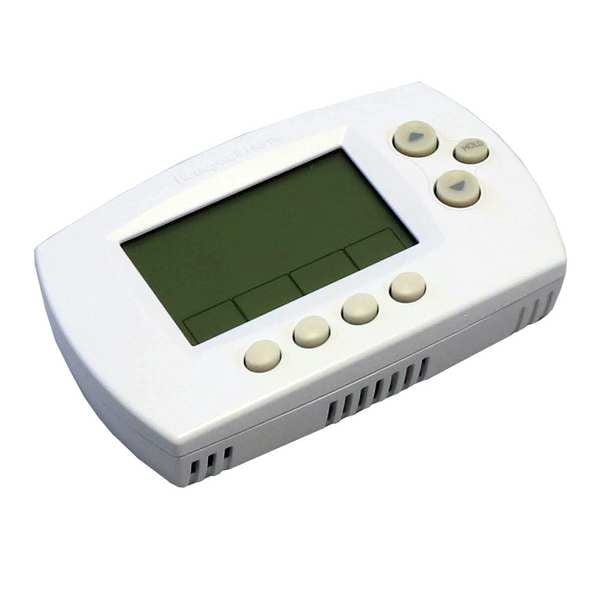

Part, 5-1-1 or 5-2 Programs, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC
| Item | Part |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 3 Heat Pump or 2 Conventional |
| Color | White |
| Control Range | 32 to 120 deg F |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Stages Cool | 2 |
| Height | 3-9/16 in |
| Width | 5-13/16 in |
| Dual Transformer Compatible | No |
| Power Method | Battery |
| Programs per Week | 5-1-1 or 5-2 |
| Depth | 1-1/2 in |
| Temp. Settings per Day | 4 |
| Display Type | Digital |
| Includes | Mfr.No.TH6320R1004 Thermostat and (2) AA Thermostat Batteries |
| Humidification Control | No |
| WiFi Capability | No |
| Programmable Fan | No |
| Low Battery Indicator | Yes |
| Terminal Designations | C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS |
| Fan Switching | Auto-on |
| Features | 5-1-1 Programmable |
| Key Pad Lockout | No |
| For Use With | Heating, Cooling Systems Enabled with RedLink(TM) Zoning Panels |
| Battery Backup | Yes |
| Application | Cool, Heat |
| Overall Width | 5-13/16 in |
| Overall Height | 3-9/16 in |
| Control Type | Push Button |
| Type | Replacement |
| Dehumidification Control | No |
| Sensor Type | Thermistor |
| Stages | 2H/2C Conventional, 3H/2C Heat Pump |
| Overall Depth | 1-1/2 in |
| Temperature Differential | 1 Degrees F |
| Temperature settings per day | 4 |
| Operating Temperature Range | 32 to 120 deg F |
| System/Fan Settings | Auto-On, Auto-Cool-Emergency Heat-Heat-Off |
| Thermostat Type | Low Voltage |
| Includes Positive Off | Yes |
| Maximum Control Temperature | 99 deg F |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Changeover Type | Manual, Automatic |
| Number of Zones | 1 |
| Wireless | Yes |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump |
| Maximum Operating Humidity | 90 % |
| Minimum Operating Temperature | 32 deg F |
| Wireless System Compatibility | RedLink |
| Programming Capability | 5-1-1, 5-2 |
| Number of Cooling Stages - Conventional System | 2 |
| Compatible System Type | Heat Pump with Aux |
| Minimum Control Temperature | 40 deg F |
| Includes Batteries | Yes |
| Number of Heating Stages - Conventional System | 2 |
| Mounting Direction | Horizontal |
| Mounting Direction/Shape | Horizontal |
| Number of Heating Stages - Heat Pump System | 3 |
| Digit Size | Standard |
| Differential Type | Adjustable |
| Temperature Control Range | 40 to 99 deg F |
| Temperature Readout | Yes |
| Minimum Operating Humidity | 5 % |
| Number of Cooling Stages - Heat Pump System | 2 |
| Fan Settings | Auto-On |
| Shape | Rectangle |
| Sensor Location | Remote |
| Operating Humidity Range | 5% to 90% RH |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Operating Temperature | 120 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
