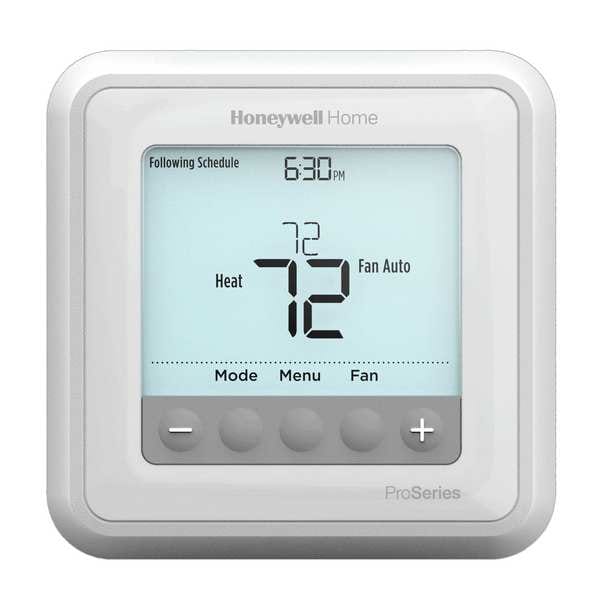

Programmable Thermostat, 7, 5-2, 5-1-1 Programs, 3 H, 2 C, Wall Mount, Hardwired/Battery, 20/30VAC
| Item | Programmable Thermostat |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 3 |
| Mounting Type | UWP Mounting System |
| Mounting Location | Wall |
| Color | White |
| Control Range | Heat 40 Degrees F to 90 Degrees F; Cool 50 Degrees F to 99 Degrees F |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Stages Cool | 2 |
| Height | 2-9/32 in |
| Width | 5 in |
| Dual Transformer Compatible | No |
| Power Method | Battery, Hardwired |
| 750mV Compatible | No |
| Programs per Week | 7, 5-2, 5-1-1 |
| Humidification Control | No |
| Temporary Program Override | Yes |
| Low Battery Indicator | Yes |
| Batteries Included | Yes |
| Terminal Designations | RC, R, C, W, W2, AUX, Y, Y2, O/B, G, K, E, U, U, L/A, S, S |
| Programmable Fan | Yes |
| Temporary Temperature Hold | Yes |
| Features | Programmable, Universal Mounting |
| Automatic Changeover | Yes |
| Temperature Limiting | No |
| Key Pad Lockout | No |
| Display Color | Blue |
| Dehumidification Control | No |
| WiFi Capability | No |
| Footnotes | 1, 3, 6, 7 |
| Display Type | Backlit |
| Fan Switching | Yes |
| For Use With | Gas, Oil or Electric Heat with A/C, Warm Air, Hot Water, High-Efficiency Furnace, Heat Pumps, Steam, Gravity |
| Filter Indicator | No |
| Display Size | 5.44 sq in |
| Temp. Settings per Day | 0, 1, 2, 4 |
| Includes | Universal Wall Plate Mounting System, Mounting Hardware, J Box Adapter, Decorative Cover Plate, Installation Instructions and User Guide |
| Battery Backup | Yes |
| Remote Sensing Capability | Yes |
| Depth | 6 in |
| Control Type | Push Button |
| Stages | 2H/2C Conventional, 3H/2C Heat Pump |
| Mounting Direction | Horizontal |
| Number of Heating Stages - Conventional System | 2 |
| Number of Heating Stages - Heat Pump System | 3 |
| Digit Size | Standard |
| Operating Temperature Range | 32 to 120 deg F |
| Application | Cool, Heat |
| Backlit Screen | Yes |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Minimum Operating Humidity | 5 % |
| Maximum Control Temperature | 99 deg F |
| Maximum Operating Temperature | 120 deg F |
| Backlit Screen Color | Blue |
| Temperature Readout | Yes |
| Contact Rating | 20/30V AC |
| Minimum Operating Temperature | 32 deg F |
| Temperature Differential | 1 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Number of Zones | 1 |
| Filter Change Reminder | No |
| Operating Humidity Range | 5% to 90% RH |
| Programming Capability | 5-1-1, 5-2, 7 Day |
| Compatible System Type | Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Electric Forced Air Furnaces |
| Millivolt Compatible | No |
| Temperature Scale | Fahrenheit, Celsius |
| Mounting Direction/Shape | Square |
| Changeover Type | Automatic |
| Overall Width | 4-1/16 in |
| Includes Positive Off | Yes |
| Overall Depth | 1-7/16 in |
| Temperature settings per day | 0, 1, 2, 4 |
| Minimum Control Temperature | 40 deg F |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump |
| Screen Height | 5-1/2 in |
| Number of Cooling Stages - Conventional System | 2 |
| Shape | Square |
| Includes Batteries | Yes |
| Thermostat Type | Low Voltage |
| Screen Width | 5-1/2 in |
| Fan Settings | Auto-Circulate-On |
| Sensor Location | Remote |
| Overall Height | 4-1/16 in |
| Maximum Operating Humidity | 90 % |
| Temperature Control Range | 40 to 99 deg F |
| Number of Cooling Stages - Heat Pump System | 2 |
| Electrical Connection Type | Hardwired |
| System/Fan Settings | Auto, Auto-Cool-Emergency Heat-Heat-Off Circulate-Follow Schedule-On |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
