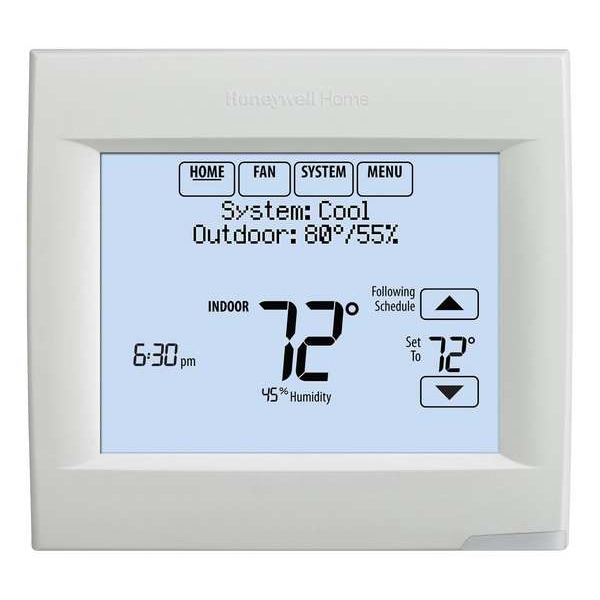

Programmable Thermostat, 7 or Nonprogrammable Programs, 1 H, 1 C, Hardwired/Battery, 18/30VAC
| Item | Programmable Thermostat |
|---|---|
| Voltage | 18/30VAC |
| Stages Heat | 1 |
| Mounting Type | Horizontal |
| Color | Arctic White |
| Control Range | Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F |
| System Switching | Auto-Heat-Cool-Off |
| Stages Cool | 1 |
| Height | 4-5/8 in |
| Width | 4-15/16 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Programs per Week | 7 or Nonprogrammable |
| Temperature Limiting | Yes |
| WiFi Capability | No |
| Display Type | Digital |
| Programmable Fan | No |
| Automatic Changeover | Yes |
| Includes | Mfr. No. TH8110R1008 and (2) AA Thermostat Batteries |
| Temporary Temperature Hold | Yes |
| Temporary Program Override | Yes |
| Battery Backup | No |
| Features | Smart Schedule, Patented Interview Based Programming and Installer Setup, RedLINK(TM) Wireless Communication, Plain Language Setup, Alerts and User Interactions Log, Customizable Service Reminders, MicroSD Port, Dual Powered - Battery or Hardwired (C Wire), Precise Temperature Control ( +/-1 Degrees F), Multiple Staging Options |
| Remote Sensing Capability | Yes |
| Dehumidification Control | Yes |
| Terminal Designations | R, RC, C, W-O/B, Y, G, K, S1 S1 |
| Fan Switching | Auto-On-Circulate-Follow Schedule |
| Batteries Included | Yes |
| Green Certification or Other Recognition | ENERGY STAR |
| Filter Indicator | Yes |
| Low Battery Indicator | Yes |
| Depth | 1-1/8 in |
| Temp. Settings per Day | 4 |
| Display Color | Blue |
| Key Pad Lockout | Yes |
| Display Size | 10 sq in |
| Humidification Control | Yes |
| Standards | Energy Star |
| Control Type | Touch Screen |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Overall Depth | 1-1/8 in |
| Maximum Operating Temperature | 120 deg F |
| Application | Cool, Heat |
| Minimum Control Temperature | 40 deg F |
| Temperature settings per day | 4 |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Sensitivity | +/-1.5 deg F |
| Temperature Control Range | 40 to 99 deg F |
| Operating Humidity Range | 5% to 90% RH |
| Digit Size | Standard |
| Maximum Operating Humidity | 90 % |
| Shape | Rectangle |
| Includes Positive Off | Yes |
| Fan Settings | Auto-Circulate-On |
| Screen Height | 10 in |
| Differential Type | Adjustable |
| Number of Cooling Stages - Heat Pump System | 1 |
| Minimum Operating Temperature | 32 deg F |
| Mounting Direction | Horizontal |
| Maximum Control Temperature | 99 deg F |
| Compatible System Type | Heat Pump with Aux, Millivolt |
| Number of Zones | 1 |
| Wireless System Compatibility | RedLink |
| Filter Change Reminder | Yes |
| Contact Rating | 18/30V AC |
| Overall Height | 4-5/8 in |
| Temperature Differential | 1 Degrees F |
| Number of Heating Stages - Conventional System | 1 |
| Includes Batteries | Yes |
| Housing Color | White |
| Overall Width | 4-15/16 in |
| Thermostat Type | Low Voltage |
| Number of Heating Stages - Heat Pump System | 1 |
| Screen Width | 10 in |
| Sensor Location | Remote |
| Mounting Direction/Shape | Horizontal |
| Application/Stages | Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Temperature Readout | Yes |
| Number of Cooling Stages - Conventional System | 1 |
| System Settings | Auto-Cool-Heat-Off |
| Electrical Connection Type | Hardwired |
| Programming Capability | 7 Day |
| Millivolt Compatible | Yes |
| Operating Temperature Range | 32 to 120 deg F |
| Minimum Operating Humidity | 5 % |
| Frequency | 50 Hz, 60 Hz |
| System/Fan Settings | Auto, Auto-Cool-Heat-Off Circulate-Follow Schedule-On |
| Changeover Type | Manual, Automatic |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
