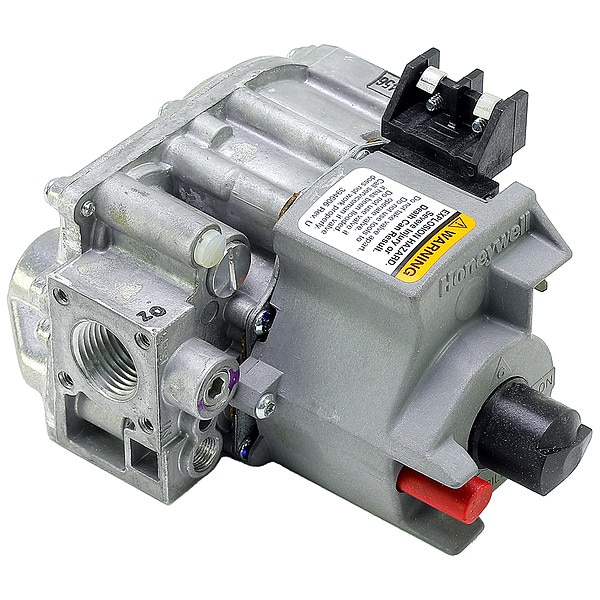

STANDING PILOT GAS VALVE, STAND OPENING, 1
| Item | Gas Valve |
|---|---|
| Flow Direction | Straight-Thru |
| Overall Length | 2-11/16 in |
| Voltage | 24 V AC |
| For Media | Natural Gas |
| Pilot Port Connection Size | 1/4 in |
| Overall Height | 5-3/8 in |
| Includes Pilot Generator Kit | Pilot Generator Kit Included |
| Valve Design | Single |
| Operating Temperature - Maximum | 175 deg F |
| Installation Orientation | Vertical, Horizontal |
| Manufacturer Series | VR8300 |
| Operating Temperature - Minimum | 0 deg F |
| Pilot Type | Standing Pilot |
| Reducer Bushings Included | 3/4 in x 1/2 in Reducer Bushing |
| Includes Pressure Regulator | Pressure Regulator Included |
| Overall Depth | 4-1/16 in |
| Includes Conversion Kit | Conversion Kit Included |
| Pilot Port Connection Type | Compression |
| Opening Characteristic | Fast Opening |
| Port Connection Size | 1/2 in |
| Pressure Tap Connection Type | NPT |
| Heating Capacity - Maximum | 290,000 BtuH |
| Includes On/Off Switch | On/Off Switch Not Included |
| Pressure Tap Connection Size | 1/8 in |
| Electrical Connections | Quick Connect Terminal |
| Includes Pressure Tap | Pressure Tap Inlet Included |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
