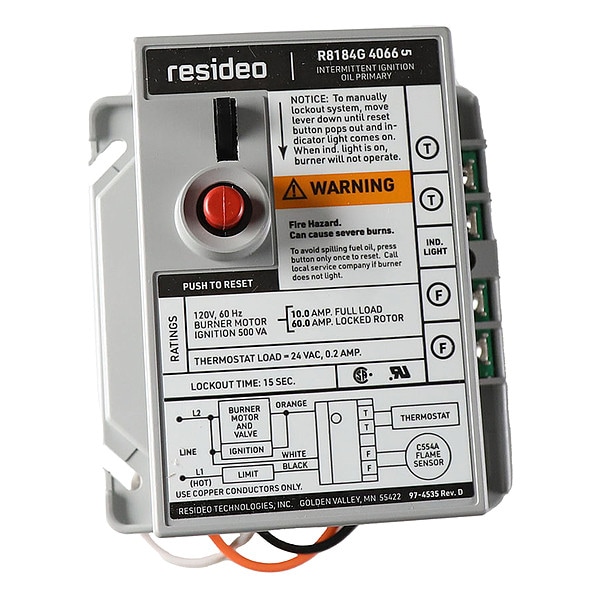

TRADELINE 120V 60HZ S-SWITCH 15 SEC
| Item | Oil Burner Control |
|---|---|
| Standards | CSA File No. LR95329-1, File No. MP268, Vol. 35 Sec. 1,3, UL Component Recognized |
| Application | Boilers, Water Heaters |
| Control Voltage | 24 V |
| Input Voltage | 120V AC @ 7.4A, 240V AC @ 3.7A |
| Overall Height | 4-3/8 in |
| Ignition Cycle Time | 15 sec |
| Flame Sensor Current Output | 7.4 A |
| Overall Depth | 2-1/2 in |
| Product Type | Integrated Furnace Control |
| Maximum Operating Temperature | 130 deg F |
| Lock Out Time | 15 sec |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 4-1/8 in |
| Main Valve Current Output | 3.7 A, 7.4 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
