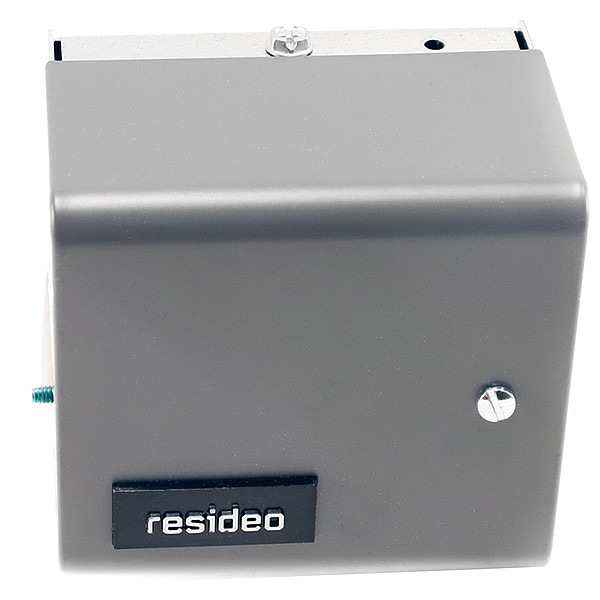

TRADELINE, HIGH LIMIT RANGE 130-240F, LOW
| Item | High/Low Limit Controller |
|---|---|
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Application | High Limit, Low Limit |
| Product Type | High/Low Limit Controller |
| Mounting Orientation | Horizontal |
| Number of Switches | 3 |
| Minimum Control Temperature | 110 deg F |
| Full Load Current @ 240V AC | 5.1 A |
| Auto/Manual Switch Included | Yes |
| Overall Depth | 2-3/4 in |
| Contact Form | SPST |
| Differential Temperature | 10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit) |
| Overall Width | 4-1/8 in |
| Overall Height | 3-7/8 in |
| Insulation Depth | 1-1/2 in, 4 in |
| Locked Rotor Current @ 240V | 30.6 A |
| Reset Type | Automatic Reset |
| Locked Rotor Current @ 120V | 48 A |
| Burner Circuit Voltage Type | Millivolt |
| Full Load Current @ 120V AC | 8 A |
| Multizone Control Compatible | Not Applicable |
| Maximum Control Temperature | 220 deg F |
| Capillary Tube Length | 3 in |
| Spud Size | 3/4 in NPT |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
