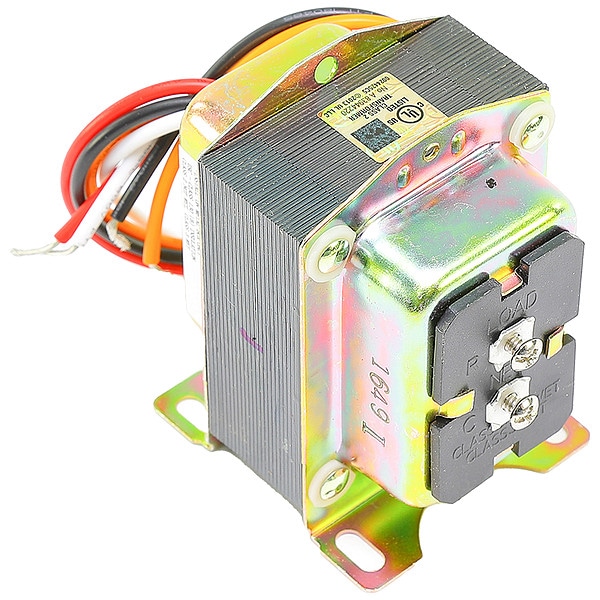

TRANSFORMER 120/208/240V WITH UNIVERSAL
| Item | Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 60 |
| Includes | Metal end bells |
| Depth | 1-3/4 in |
| Height | 1-11/16 in |
| Width | 3-3/16 in |
| Electrical Connection - Current Transformer | Primary- 9 in. Leadwires, Secondary- Screw Terminals |
| Electrical Ratings, Output | 24 Vac at 50 VA |
| Electrical Connections (Primary)(mm) | 229 mm leadwires |
| Approvals, Canadian Standards Association | CSA Certified: A & B models. |
| Electrical Ratings | Primary voltage--120 Vac, 208 Vac, 240 Vac; Secondary voltage--27.5 V.O.C. |
| Temperature Range (F) | -20 F to +105 F |
| Approvals, Underwriters Laboratories Inc. | UL Listed: A,C,F models. File # E14881 |
| Electrical Connections (Secondary)(mm) | (2) screw terminals |
| Temperature Range (C) | -29 C to +41 C |
| Electrical Connections (Secondary)(in.) | (2) screw terminals |
| Electrical Connections (Primary)(in.) | 9 in. leadwires |
| Package Quantity | 1 |
