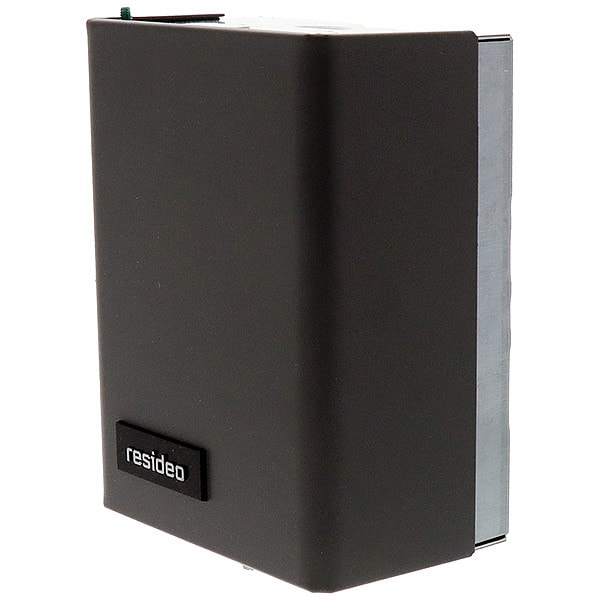

TRIPLE AQUASTAT RELAY LINE VOLT BURNER C
| Item | Immersion Controller |
|---|---|
| Includes | 3 in Insertion Well, Ground Screw |
| Standards | LR1620, MBPR2, MP466, UL Listed |
| Application | Circulator, High Limit, Low Limit |
| Product Type | Controller |
| Mounting Orientation | Vertical |
| Overall Depth | 3-1/8 in |
| Insulation Depth | 3 in |
| Overall Width | 4-3/8 in |
| Reset Type | Automatic Reset |
| Full Load Current @ 120V AC | 7.4 A |
| Locked Rotor Current @ 120V | 44.4 A |
| Differential Temperature | 10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit) |
| Auto/Manual Switch Included | Yes |
| Minimum Control Temperature | 130 deg F |
| Maximum Control Temperature | 240 deg F |
| Burner Circuit Voltage Type | Millivolt |
| Capillary Tube Length | 3-3/8 in |
| Input Voltage | 120V AC |
| Locked Rotor Current @ 240V | 22.2 A |
| Number of Zone Control Valves Supported | 1 |
| Full Load Current @ 240V AC | 3.7 A |
| Multizone Control Compatible | Yes |
| Spud Size | 3 in |
| Contact Form | Not Applicable |
| Number of Zone Control Relays Supported | 1 |
| Number of Switches | 1 |
| Overall Height | 6-1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
