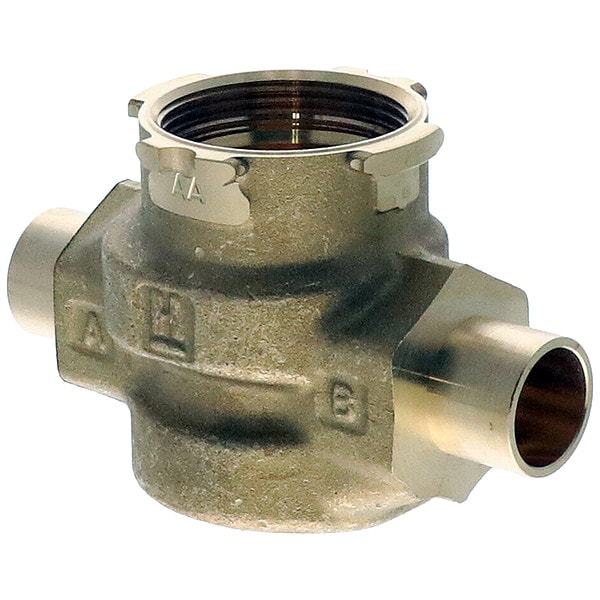

Two-Way 1/2 In, Sweat, VC Valve Assembly
| Item | Hydronic Globe Valve |
|---|---|
| Type | 2-Way, Cartridge Cage |
| For Use With | Water or Glycol Solution 50% Max |
| Depth (In.) | 2-3/4 |
| Width (In.) | 3-1/2 |
| Max. Water Temp. (Deg. F) | 34 to 203 |
| Safe Working Water PSI | 300 psi |
| Description/Special Features | Two Way Bodies May Be Plumbed In Either Direction, Replacing The Cartridge Rebuilds The Valve, Linearized Cartridge For Use With Floating Actuator |
| Includes | Installation Manual |
| Connection Type/Size (In.) | Sweat 1/2 |
| Specifications | Quick, Open, Linear, And Equal Percentage Control Characteristics Available. Bi-Directional Installation. No Tools Required For Actuator Installation Or Removal. Actuator Removal Does Not Require Draining System. Service Is By Replacement Of Cartridge, Not Valve Body. |
| Height (In.) | 4-3/8 |
| Agency Compliance | CRN |
| Coefficient of Volume | 3.5 |
| Body Material | Bronze |
| Port Connection Gender | Female |
| Valve Action | Not Applicable |
| Port Connection Size | 1/2 in |
| Actuator Voltage | Not Applicable |
| Body Pattern | Two-Way |
| Actuator Gears Material | Not Applicable |
| For Media | Water-Glycol Solution to 50% |
| Operating Temperature - Maximum | 203 deg F |
| Operating Temperature - Minimum | 34 deg F |
| Port Connection Type | Sweat |
| Actuator Control Pressure - Minimum | Not Applicable |
| Actuator Type | Not Applicable |
| Stem Material | Stainless Steel |
| Actuator Cover Material | Not Applicable |
| Overall Length | 3-1/4 in |
| Paddle Material | EPDM |
| Actuator Control Pressure - Maximum | Not Applicable |
| Includes Actuator | Actuator Not Included |
| Close-Off Pressure | 60 psi |
| Overall Width | 4-3/8 in |
| Actuator Return Action | Not Applicable |
| Actuator Control Signal | Not Applicable |
| Overall Depth | 2-3/4 in |
| Gasket/Plug Material | EPDM |
| Coefficient of Volume (Cv) | 3.5 |
| Actuator Housing Material | Not Applicable |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
