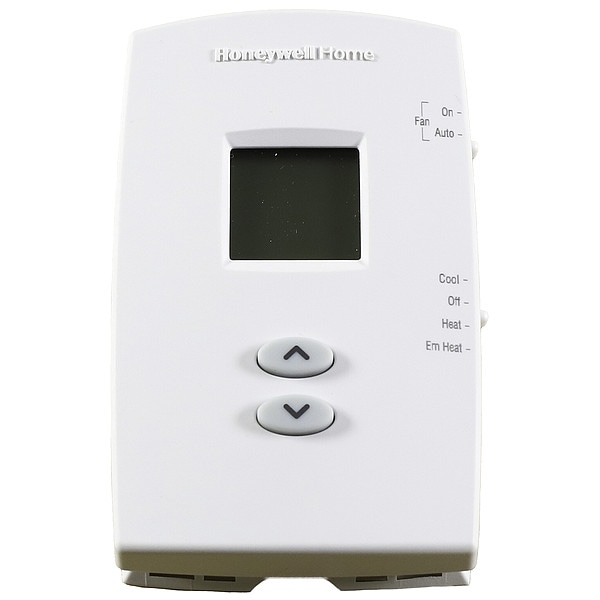

Vertical Non-Programmable Thermostats, 2 H, 1 C, Hardwired/Battery, 20/30VAC
| Item | Vertical Non-Programmable Thermostats |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 2 |
| Mounting Type | Vertical |
| Color | Premier White |
| Control Range | Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Stages Cool | 1 |
| Height | 4-11/16 in |
| Width | 2-7/8 in |
| Dual Transformer Compatible | No |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Terminal Designations | R, C, Y, AUX/E, G, O, B |
| Batteries Included | Yes |
| Footnotes | 3, 4 |
| Fan Switching | Auto-on |
| Display | Digital Backlit |
| Low Battery Indicator | Yes |
| Battery Backup | Yes |
| Includes | 2 AAA batteries |
| Humidification Control | No |
| For Use With | Heat pump |
| Depth | 1-1/8 in |
| Key Pad Lockout | No |
| Display Type | Digital |
| Dehumidification Control | No |
| Mounting | Vertical |
| Control Type | Push Button, Slide Switch |
| Stages | 2H/1C Heat Pump |
| Type | C, HP, Digital Nonprogrammable Multi Stage H |
| Overall Height | 4-11/16 in |
| Overall Width | 2-7/8 in |
| Application | Cool, Heat |
| Minimum Operating Temperature | 32 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Operating Temperature Range | 32 to 120 deg F |
| Shape | Rectangle |
| Operating Humidity Range | 5% to 90% |
| System/Fan Settings | Auto-On, Cool-Emergency Heat-Heat-Off |
| Mounting Hole Diameter | 3/16 in, 7/32 in |
| Changeover Type | Manual |
| Number of Heating Stages - Heat Pump System | 2 |
| Frequency | 50 Hz, 60 Hz |
| Overall Depth | 1-1/8 in |
| Maximum Control Temperature | 99 deg F |
| Compatible System Type | Heat Pump with Aux |
| Digit Size | Standard |
| Mounting Direction/Shape | Vertical |
| Maximum Operating Humidity | 90 % |
| Includes Positive Off | Yes |
| Thermostat Type | Low Voltage |
| System Settings | Cool-Emergency Heat-Heat-Off |
| Number of Zones | 1 |
| Millivolt Compatible | Yes |
| Minimum Control Temperature | 40 deg F |
| Minimum Operating Humidity | 5 % |
| Number of Cooling Stages - Heat Pump System | 1 |
| Mounting Direction | Vertical |
| Temperature Control Range | 40 to 99 deg F |
| Battery Type | AAA Batteries |
| Contact Rating | 20 V AC, 30 V AC |
| Number of Cooling Stages - Conventional System | 0 |
| Programming Capability | Not Programmable |
| Electrical Connection Type | Hardwired |
| Number of Heating Stages - Conventional System | 0 |
| Amperage | 0.02 to 1.0 A |
| Maximum Operating Temperature | 120 deg F |
| Fan Settings | Auto-On |
| Housing Color | White |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
