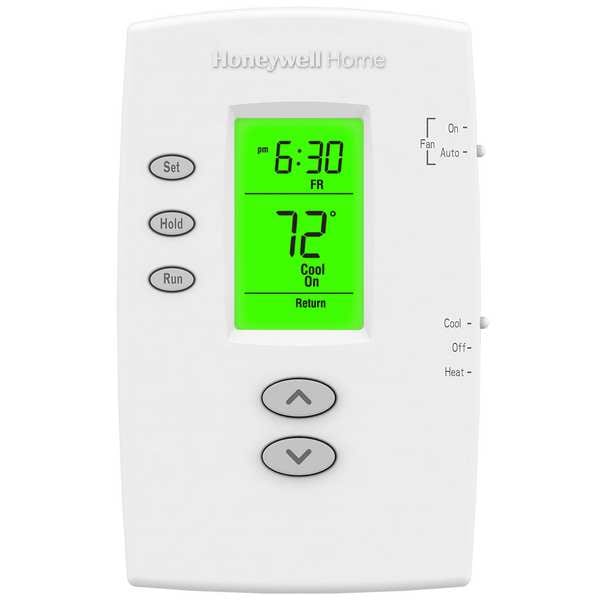

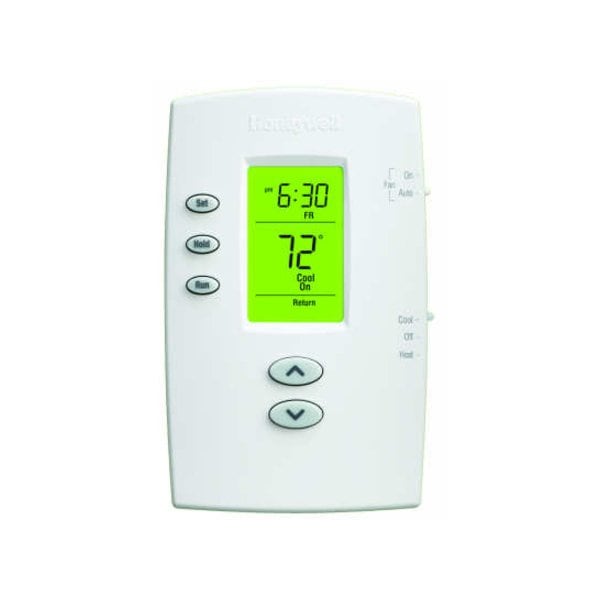

Vertical Programmable Thermostats, 5-2 Programs, 1 H, 1 C, Hardwired/Battery, 20/30VAC
| Item | Vertical Programmable Thermostats |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 1 |
| Mounting Type | Vertical |
| Color | Premier White |
| Control Range | Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Height | 4-11/16 in |
| Width | 2-7/8 in |
| Dual Transformer Compatible | No |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Programs per Week | 5-2 |
| Fan Switching | Auto-on |
| Temp. Settings per Day | 4 |
| Includes | 2 AA Batteries |
| Key Pad Lockout | No |
| For Use With | Conventional or Heat Pumps |
| Footnotes | 3, 4 |
| Features | Side Switches |
| WiFi Capability | No |
| Batteries Included | Yes |
| Depth | 1-1/8 in |
| Low Battery Indicator | Yes |
| Humidification Control | No |
| Terminal Designations | R, RC, C, W, Y, G, O, B |
| Battery Backup | Yes |
| Display Type | Backlit |
| Remote Sensing Capability | No |
| Programmable Fan | No |
| Temporary Program Override | Yes |
| Dehumidification Control | No |
| Mounting | Vertical |
| Type | C, HP, Digital Programmable Single Stage H |
| Control Type | Push Button, Slide Switch |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Overall Width | 2-7/8 in |
| Overall Height | 4-11/16 in |
| Application | Cool, Heat |
| Includes Batteries | Yes |
| Temperature Control Range | 40 to 99 deg F |
| Number of Heating Stages - Conventional System | 1 |
| Temperature Readout | Yes |
| Number of Cooling Stages - Heat Pump System | 1 |
| Backlit Screen | Yes |
| Mounting Direction/Shape | Vertical |
| Electrical Connection Type | Hardwired |
| Number of Zones | 1 |
| Battery Type | AA Batteries |
| Maximum Operating Humidity | 90 % |
| Minimum Operating Temperature | 32 deg F |
| Millivolt Compatible | Yes |
| Changeover Type | Manual |
| Application/Stages | Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Maximum Control Temperature | 99 deg F |
| Temperature settings per day | 4 |
| Fan Settings | Auto-On |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems, Millivolt |
| Wireless | No |
| Mounting Direction | Vertical |
| Includes Positive Off | Yes |
| Programming Capability | 5-2 |
| System Settings | Cool-Heat-Off |
| Sensor Location | Built-In |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Minimum Operating Humidity | 5 % |
| Screen Height | 1-3/4 in |
| Frequency | 50 Hz, 60 Hz |
| Overall Depth | 1-1/8 in |
| Digit Size | Easy Read |
| Number of Cooling Stages - Conventional System | 1 |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Operating Temperature | 120 deg F |
| Number of Heating Stages - Heat Pump System | 1 |
| Housing Color | White |
| Shape | Rectangle |
| Minimum Control Temperature | 40 deg F |
| Operating Temperature Range | 32 to 120 deg F |
| Operating Humidity Range | 5% to 90% RH |
| Screen Width | 1-3/4 in |
| Temperature Differential | 1 Degrees F |
| Contact Rating | 20/30V AC |
| Thermostat Type | Low Voltage |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
