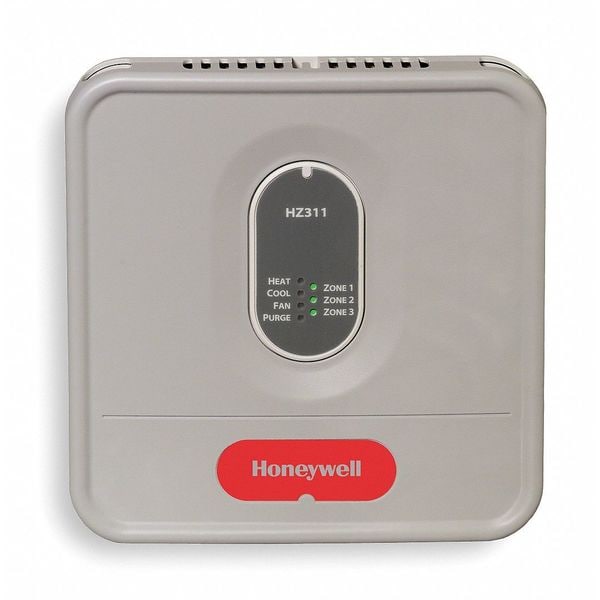

Zone Panel, 3 Zone, Output Amps 6.25 VA
| Type | TrueZONE(R) 3-Zone Panel |
|---|---|
| Includes | AT140A1042 40 VA Transformer, AT175A1008 75 VA Transformer, DATS C7735A1000 Discharge Air Temperature Sensor (DATS), Slave Damper Control Relay |
| Connection | Push-Button Terminals |
| For Use With | True Zone Systems |
| Item | Zone Panel |
| Power Method | 24 Vac |
| Requires | 1 Heat, 1 Cool Thermostat |
| Output Amps | 6.25 VA |
| Voltage (AC) | 24 |
| Width (In.) | 8 |
| Depth (In.) | 2 |
| Height (In.) | 8-1/8 |
| Color | Gray |
| Ambient Temp. Range | -20 to 150 |
| Application | Controls Air Flow In Heating And Cooling Systems |
| Terminal Designations | C, G, M1, M4, M6, R, RC, W, Y |
| Full Load Current | 6.25 A |
| Minimum Ambient Temperature | -40 Degrees F |
| Overall Height | 8-1/8 in |
| Requires Thermostat Type | Heat, 1 Cool |
| Housing Color | Gray |
| Maximum Ambient Temperature | 165 Degrees F |
| Nameplate Voltage | 24V AC |
| Overall Width | 8 in |
| Overall Depth | 1-7/8 in |
| Product Type | Zone Panel |
| Number of Zones | 3 |
| Connection Type | Push-Button Terminals |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
