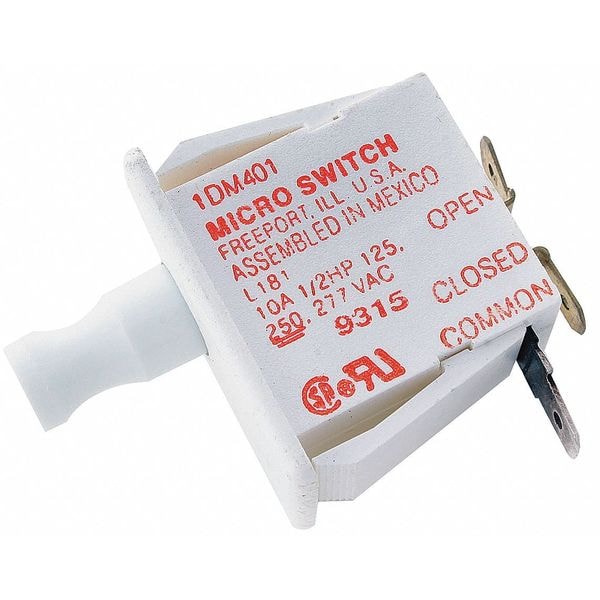

Interruptor de acción rápida montable en panel industrial, con agarre de dedo, actuador de émbolo, SPDT.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Finger Grip |
| AC Contact Rating - Snap Action Switch | 10 A @ 240 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1.12 in |
| Width - Snap Action Switch | 1-1/4 in |
| Depth - Snap Action Switch | 0.55 in |
| Length | 1-1/4 in |
| Over Travel | 0.52 in |
| Depth | 0.55 in |
| Actuator Length | 1-1/4 in |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Differential Travel | 0.045 in |
| Height | 1.12 in |
| Terminal Type | Quick Connect |
| Release Force | 3 ozf |
| Voltage Rating | 250VAC |
| Standards | CSA, UL Listed |
| Operating Force | 15 oz |
| Current Rating | 10 A |
| Mounting Dimension | 1.12 in x 0.55 in (Panel Hole) |
| Operating Temp. Range | -35 Degrees to 180 Degrees F |
| Mounting Dimension - Snap Action Switch | 1.12 in x 0.55 in Panel Hole |
| Series | DM |
| Max. Pretravel | 0.18 in |
| Contact Form | 1NO/1NC |
| Watertight - Snap Action Switch | No |
| Housing Material | Polyester |
| Type of Actuator | Finger Grip Plunger |
| DC Contact Rating | Not Applicable |
| AC Contact Rating | 10 A @ 240 V |
| Electrical Rating | 10A/125-277V AC |
| Poles/Contacts | SPDT 1NO 1NC |
| Connection | Quick Connect Terminal |
| Free Position | 0.700 (17.8mm) Extended |
| Construction | Polyester Housing, White Faceplate, White Plunger |
| Operating Temperature | -35 to 180 Degree F |
| Switch Type | Snap-in Panel Mount Door Switch |
| Nominal Dimensions | Mtg Hole HxW 1.12x0.55" (28.4x14.0mm) |
| Roller Material | Not Applicable |
| Differential Travel - Maximum | 0.045 in |
| Lever Actuator Length | Not Applicable |
| Roller Adjustability | Not Applicable |
| Body Material | Polyester |
| Body Height | 0.92 in |
| Operating Temperature - Minimum | -35 deg F |
| Overtravel | 0.52 in |
| Overall Depth | 0.55 in |
| Differential Travel - Minimum | Not Applicable |
| Electrical Connection | Quick Connect |
| Overall Height | 1.12 in |
| Pretravel | 0.18 in |
| Center Mounting Hole Distance | Not Applicable |
| Actuator Style | Plunger |
| Body Width | 0.52 in |
| Operating Force - Minimum | Not Applicable |
| Roller Diameter | Not Applicable |
| Operating Force - Maximum | 15 ozf |
| Roller Position | Not Applicable |
| Overall Width | 1-1/4 in |
| Body Depth | 0.97 in |
| Operating Temperature - Maximum | 180 deg F |
| Package Quantity | 1 |
