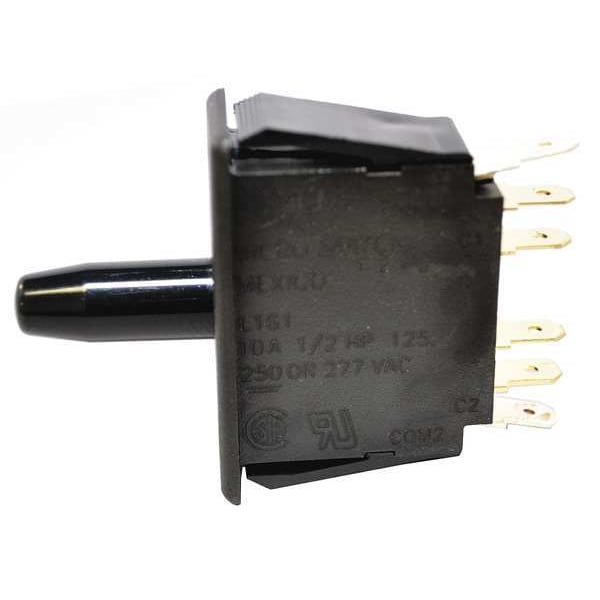

Interruptor de acción rápida montado en panel industrial, actuador de émbolo, DPDT, calificación de contacto de 10A @240V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger |
| AC Contact Rating - Snap Action Switch | 10 A @ 240 V |
| Contact Form- Switches | DPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1.12 in |
| Depth - Snap Action Switch | 0.55 in |
| Watertight - Snap Action Switch | No |
| Max. Pretravel | 0.11 in |
| Operating Force | 24 oz |
| Contact Form | 2NO/2NC |
| Voltage Rating | 250VAC |
| Mounting Dimension - Snap Action Switch | 1.45 in x 0.55 in Panel Hole |
| Depth | 0.55 in |
| Housing Material | Polyester |
| Terminal Type | Quick Connect |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Height | 1.12 in |
| Differential Travel | 0.045 in |
| Over Travel | 0.4 in |
| Release Force | 6 ozf |
| Standards | CSA, UL Listed |
| Mounting Dimension | 1.45 in x 0.55 in (Panel Hole) |
| Type of Actuator | Bullet Nose Plunger |
| Series | DM |
| Actuator Length | 1.94 in |
| Operating Temp. Range | -35 Degrees to 180 Degrees F |
| Current Rating | 10 A |
| DC Contact Rating | Not Applicable |
| AC Contact Rating | 10 A @ 240 V |
| Overtravel | 0.4 in |
| Body Depth | 1.03 in |
| Electrical Connection | Quick Connect |
| Pretravel | 0.11 in |
| Operating Force - Minimum | Not Applicable |
| Body Height | 1.32 in |
| Roller Diameter | Not Applicable |
| Roller Material | Not Applicable |
| Differential Travel - Maximum | 0.045 in |
| Overall Depth | 0.55 in |
| Overall Height | 1.12 in |
| Roller Adjustability | Not Applicable |
| Differential Travel - Minimum | Not Applicable |
| Lever Actuator Length | Not Applicable |
| Operating Temperature - Minimum | -35 deg F |
| Body Material | Polyester |
| Operating Force - Maximum | 24 ozf |
| Operating Temperature - Maximum | 180 deg F |
| Roller Position | Not Applicable |
| Actuator Style | Plunger |
| Center Mounting Hole Distance | Not Applicable |
| Body Width | 0.52 in |
| Package Quantity | 1 |
