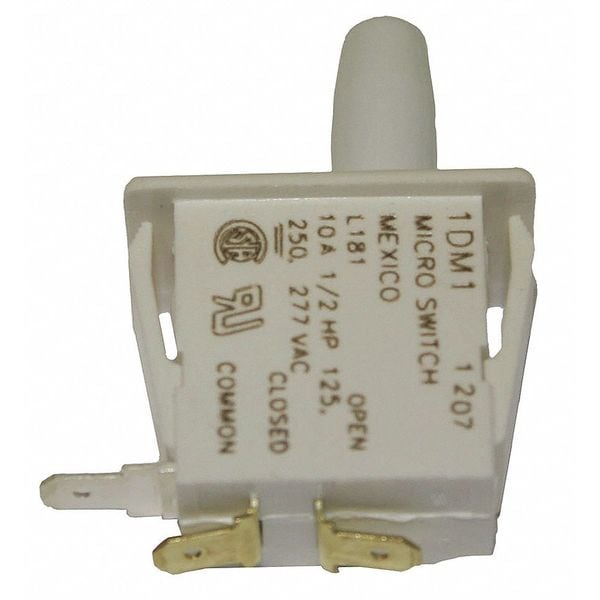

Interruptor de Acción Rápida de Montaje en Panel Industrial, Actuador de Émbolo, SPDT, Calificación de Contacto de 10A @ 240V AC
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger |
| AC Contact Rating - Snap Action Switch | 10 A @ 240 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1.12 in |
| Depth - Snap Action Switch | 0.55 in |
| Actuator Length | 0.96 in |
| Voltage Rating | 250VAC |
| Release Force | 3 ozf |
| Housing Material | Polyester |
| Type of Actuator | Bullet Nose Plunger |
| Differential Travel | 0.045 in |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Height | 1.12 in |
| Max. Pretravel | 0.13 in |
| Current Rating | 10 A |
| Mounting Dimension | 1.12 in x 0.55 in (Panel Hole) |
| Operating Force | 15 oz |
| Contact Form | 1NO/1NC |
| Operating Temp. Range | -35 Degrees to 180 Degrees F |
| Standards | CSA, UL Listed |
| Watertight - Snap Action Switch | No |
| Depth | 0.55 in |
| Over Travel | 3/8 in |
| Series | DM |
| Mounting Dimension - Snap Action Switch | 1.12 in x 0.55 in Panel Hole |
| Terminal Type | Quick Connect |
| DC Contact Rating | Not Applicable |
| AC Contact Rating | 10 A @ 240 V |
| Body Height | 0.92 in |
| Differential Travel - Maximum | 0.045 in |
| Operating Temperature - Maximum | 180 deg F |
| Center Mounting Hole Distance | Not Applicable |
| Roller Adjustability | Not Applicable |
| Roller Material | Not Applicable |
| Operating Temperature - Minimum | -35 deg F |
| Roller Position | Not Applicable |
| Electrical Connection | Quick Connect |
| Operating Force - Maximum | 15 ozf |
| Overall Height | 1.12 in |
| Differential Travel - Minimum | Not Applicable |
| Body Material | Polyester |
| Body Width | 0.52 in |
| Operating Force - Minimum | Not Applicable |
| Body Depth | 0.97 in |
| Overtravel | 3/8 in |
| Roller Diameter | Not Applicable |
| Lever Actuator Length | Not Applicable |
| Pretravel | 0.13 in |
| Overall Depth | 0.55 in |
| Actuator Style | Plunger |
| Package Quantity | 1 |
