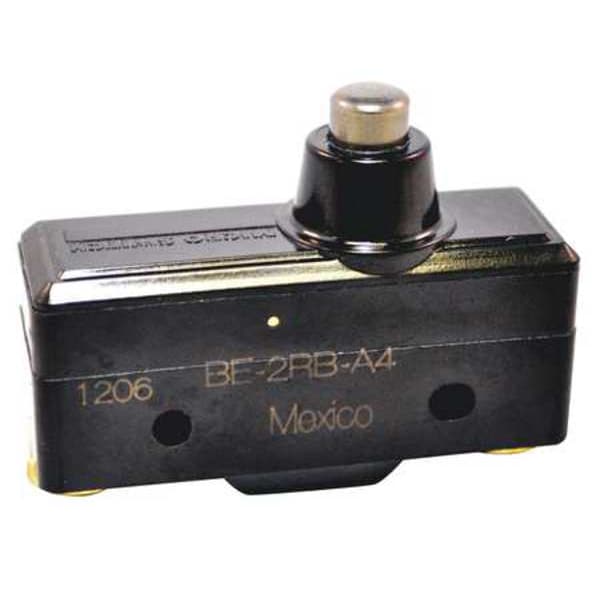

Interruptor de acción rápida industrial, con recorrido excesivo, actuador de émbolo, SPDT, calificación de contacto de 25A @ 480V CA.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Overtravel Roller |
| AC Contact Rating - Snap Action Switch | 25 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 25 A @ 250 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1 in |
| Width - Snap Action Switch | 2 in |
| Depth - Snap Action Switch | 0.7 in |
| Max. Pretravel | 0.05 in |
| Series | BE |
| Operating Force | 2.5 oz |
| Operating Temp. Range | -67 Degrees to 185 Degrees F |
| Watertight - Snap Action Switch | No |
| Type of Actuator | Overtravel Plunger |
| Over Travel | 0.094 in |
| Current Rating | 25 A |
| Differential Travel | 0.002 in |
| Height | 1 in |
| Length | 2 in |
| Housing Material | General Purpose Phenolic |
| Standards | CE, CSA, ENEC, UKCA, UL Listed |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Actuator Length | 2 in |
| Depth | 0.7 in |
| Contact Form | 1NO/1NC |
| Mounting Dimension | 1.00" Centers |
| Release Force | 10 ozf |
| Electrical Connection - Snap Action Switch | Screw |
| Voltage Rating | 250VAC |
| Terminal Type | Screw |
| DC Contact Rating | 25 A @ 250 V |
| AC Contact Rating | 25 A @ 125 to 250 V |
| Connection Configuration | Bottom Facing Screw w/Cup Washer, 8-32 x 0.218 in. |
| Contact Rating | 25A 125-250Vac |
| Differential-Travel - max | 0.0075 in |
| Over-Travel | 0.094 in |
| Connection | Screw Terminal |
| Head | Plunger |
| Head Action | Spring Return, Standard |
| Operating Temperature | -67°F (-55°C) to 185°F (85°C) |
| Type | Basic Limit Switch |
| Force to Operate | 22 oz |
| Pre-Travel - max | 0.05 in |
| Construction | Phenolic |
| Operator Configuration | Low Overtravel |
| Body Depth | 0.7 in |
| Operating Temperature - Minimum | -67 deg F |
| Body Height | 1 in |
| Body Material | Phenolic |
| Roller Diameter | Not Applicable |
| Differential Travel - Minimum | Not Applicable |
| Body Width | 1.94 in |
| Operating Force - Minimum | Not Applicable |
| Center Mounting Hole Distance | 1 in |
| Overall Height | 1 in |
| Roller Material | Not Applicable |
| Overtravel | 0.094 in |
| Actuator Style | Plunger |
| Operating Temperature - Maximum | 185 deg F |
| Pretravel | 0.05 in |
| Operating Force - Maximum | 2.5 ozf |
| Differential Travel - Maximum | 0.002 in |
| Overall Depth | 0.7 in |
| Roller Position | Not Applicable |
| Lever Actuator Length | Not Applicable |
| Electrical Connection | Screw |
| Overall Width | 1.94 in |
| Mounting Hole Diameter | 1/8 in |
| Roller Adjustability | Not Applicable |
| Package Quantity | 1 |
