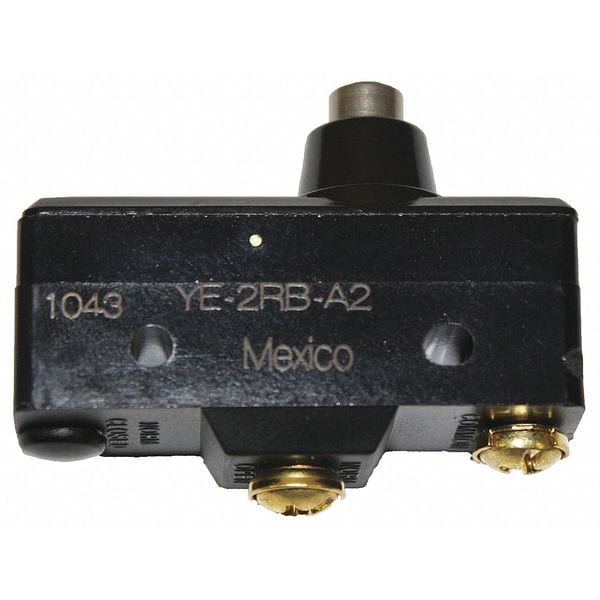

Interruptor de Acción Rápida Industrial, Pin, Actuador de Émbolo, 1NO, Clasificación de Contacto de 25A @ 240V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 25 A @ 240 V |
| Contact Form- Switches | 1NO |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1 in |
| Width - Snap Action Switch | 2 in |
| Depth - Snap Action Switch | 0.7 in |
| Depth | 0.7 in |
| Terminal Type | Screw |
| Mounting Dimension | 1.00" Centers |
| Type of Actuator | Pin Plunger |
| Contact Form | 1NO |
| Current Rating | 25 A |
| Standards | CSA, UL Listed |
| Operating Force | 14.0 to 22.0 oz |
| Height | 1 in |
| Max. Pretravel | 0.05 in |
| Series | YE |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Actuator Length | Not Applicable |
| Operating Temp. Range | -67 Degrees to 185 Degrees F |
| Differential Travel | 0.0020 to 0.0075 in |
| Voltage Rating | 250VAC |
| Electrical Connection - Snap Action Switch | Screw |
| Release Force | 10 ozf |
| Watertight - Snap Action Switch | No |
| Over Travel | 0.094 in |
| Length | 2 in |
| Housing Material | General Purpose Phenolic |
| AC Contact Rating | 25 A @ 250 V |
| DC Contact Rating | Not Applicable |
| Body Depth | 0.7 in |
| Overall Height | 1 in |
| Overtravel | 0.094 in |
| Roller Diameter | Not Applicable |
| Body Material | Phenolic |
| Operating Force - Minimum | 14 ozf |
| Overall Depth | 0.7 in |
| Roller Material | Not Applicable |
| Pretravel | 0.05 in |
| Operating Temperature - Maximum | 185 deg F |
| Actuator Style | Plunger |
| Overall Width | 2 in |
| Differential Travel - Minimum | Not Applicable |
| Differential Travel - Maximum | 0.002 in |
| Operating Temperature - Minimum | -67 deg F |
| Body Height | 1 in |
| Lever Actuator Length | Not Applicable |
| Operating Force - Maximum | 22 ozf |
| Center Mounting Hole Distance | 1 in |
| Body Width | 2 in |
| Electrical Connection | Screw |
| Roller Adjustability | Not Applicable |
| Roller Position | Not Applicable |
| Package Quantity | 1 |
