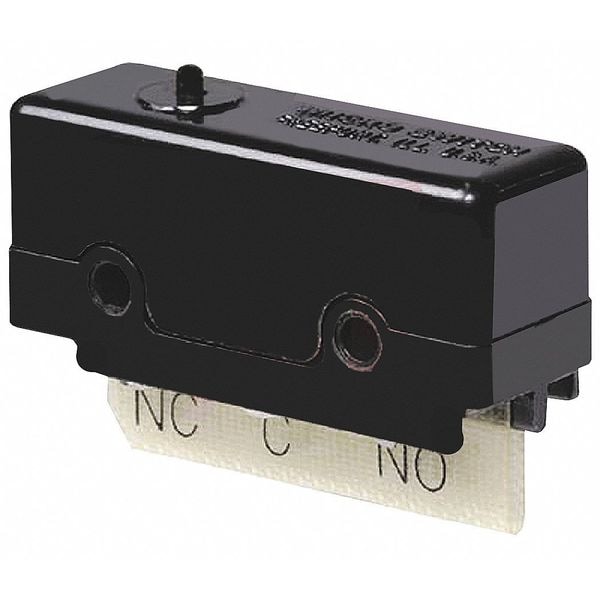

Interruptor de Acción Rápida Industrial, Pin, Actuador de Émbolo, DPDT
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| DC Contact Rating - Snap Action Switch | 10 A @ 24 V |
| Contact Form- Switches | DPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1 in |
| Width - Snap Action Switch | 2 in |
| Depth - Snap Action Switch | 0.7 in |
| Release Force | 2 ozf |
| Housing Material | General Purpose Phenolic |
| Voltage Rating | 24VDC |
| Series | DT |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Operating Temp. Range | -67 Degrees to 185 Degrees F |
| Type of Actuator | Pin Plunger |
| Contact Form | 2NO/2NC |
| Differential Travel | 0.040 to 0.060 in |
| Over Travel | 0.005 in |
| Operating Force | 7.0 to 10.0 oz |
| Depth | 0.7 in |
| Mounting Dimension | 1.00" Centers |
| Length | 2 in |
| Terminal Type | Screw |
| Watertight - Snap Action Switch | No |
| Max. Pretravel | 0.075 in |
| Electrical Connection - Snap Action Switch | Screw |
| Current Rating | 10 A |
| Height | 1 in |
| Actuator Length | 2 in |
| Standards | CSA, MIL-PRF-8805, UL Listed |
| DC Contact Rating | 10 A @ 28 V |
| AC Contact Rating | 10 A @ 125 V, 10 A @ 250 V |
| Connection | Screw Terminal |
| Pre-Travel - max | 0.075 in |
| Differential-Travel - max | 0.06 in |
| Type | Basic Limit Switch |
| Head Action | Spring Return, Standard |
| Operator Configuration | Pin |
| Over-Travel | 0.005 in |
| Force to Operate | 20 oz |
| Contact Rating | 10A 125-250V AC 0.3A 125V DC 0.15A 250V DC |
| Construction | Phenolic |
| Head | Plunger |
| Operating Temperature | -67°F (-55°C) to 185°F (85°C) |
| Connection Configuration | Bottom Facing Screw w/Lockwasher, 4-40 x 0.125 in. |
| Overall Height | 1 in |
| Body Depth | 0.69 in |
| Operating Temperature - Maximum | 185 deg F |
| Differential Travel - Minimum | 0.04 in |
| Overall Width | 1.94 in |
| Electrical Connection | Screw |
| Operating Force - Maximum | 10 ozf |
| Lever Actuator Length | Not Applicable |
| Center Mounting Hole Distance | 1 in |
| Operating Force - Minimum | 7 ozf |
| Actuator Style | Plunger |
| Overtravel | 0.005 in |
| Pretravel | 0.075 in |
| Differential Travel - Maximum | 0.06 in |
| Roller Adjustability | Not Applicable |
| Roller Position | Not Applicable |
| Body Height | 1.28 in |
| Body Width | 1.94 in |
| Roller Diameter | Not Applicable |
| Overall Depth | 0.69 in |
| Body Material | Phenolic |
| Roller Material | Not Applicable |
| Operating Temperature - Minimum | -67 deg F |
| Package Quantity | 1 |
